PVC Processing Description
Ergonomic horizontal assembly and static work platform for large-scale PVC and Aluminum profiles.
Products Groups
☰ Select a Product Category
▼
Aluminium Processing

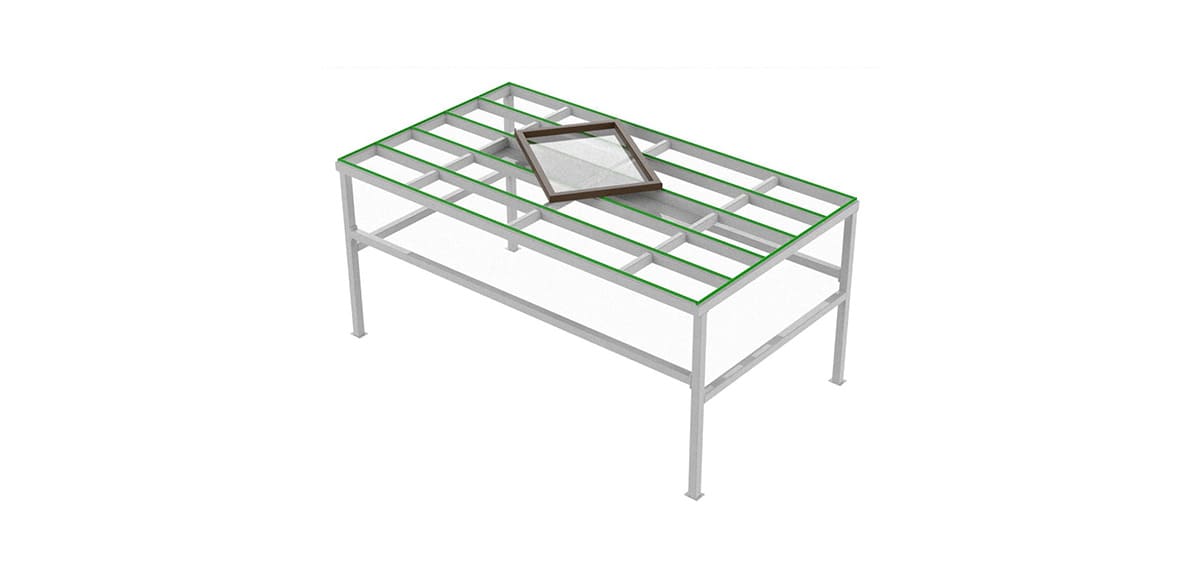

GP 3000 | GP 3000-S | Assembly Tables
Features
- Frame: High-strength steel construction.
- Infrastructure: Industrial-scale table length.
- Surface Protection: High-density brush-strips.

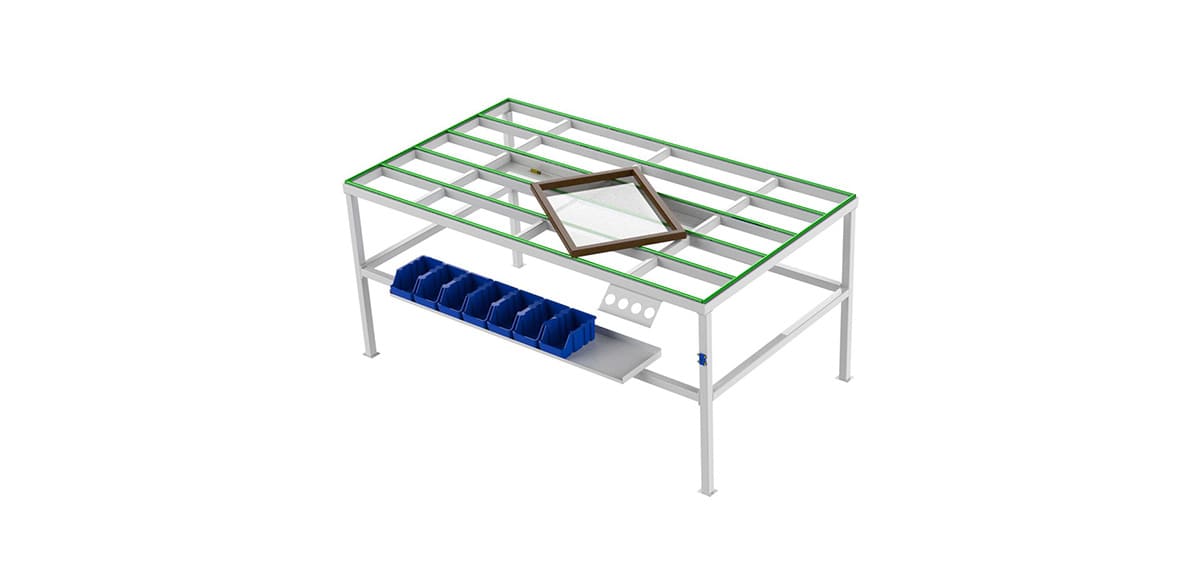

- Hardware Management: Multi-compartment storage bins (GP 3000-S).
- Adjustability: Height-adjustable table mechanism.
- Positioning: Adjustable length stop bar.
Technical Data
| Category | Feature | GP 3000 | GP 3000-S |
| Capacity | Maximum Load Capacity | 300 kg | 300 kg |
| Supporting Surface Material | High-Density Brush-Strips | High-Density Brush-Strips | |
| Hardware Management System | None | Storage Bins & Rails | |
| Physical Dimensions | Table Dimensions (WxLxH) | 1,740 x 3,040 x 1,399 mm | 1,900 x 3,040 x 1,399 mm |
| Unit Total Net Weight | 120 kg | 128 kg | |
| Logistics | Shipping Dimensions (WxLxH) | 1,900 x 3,060 x 1,420 mm | 1,900 x 3,060 x 1,420 mm |
| Total Shipping Weight | 145 kg | 153 kg |
