Overhead straight and mitre cutting of aluminum, PVC, and wood profiles in a compact bench-top architecture.
Products Groups
☰ Select a Product Category
▼
Aluminium Processing

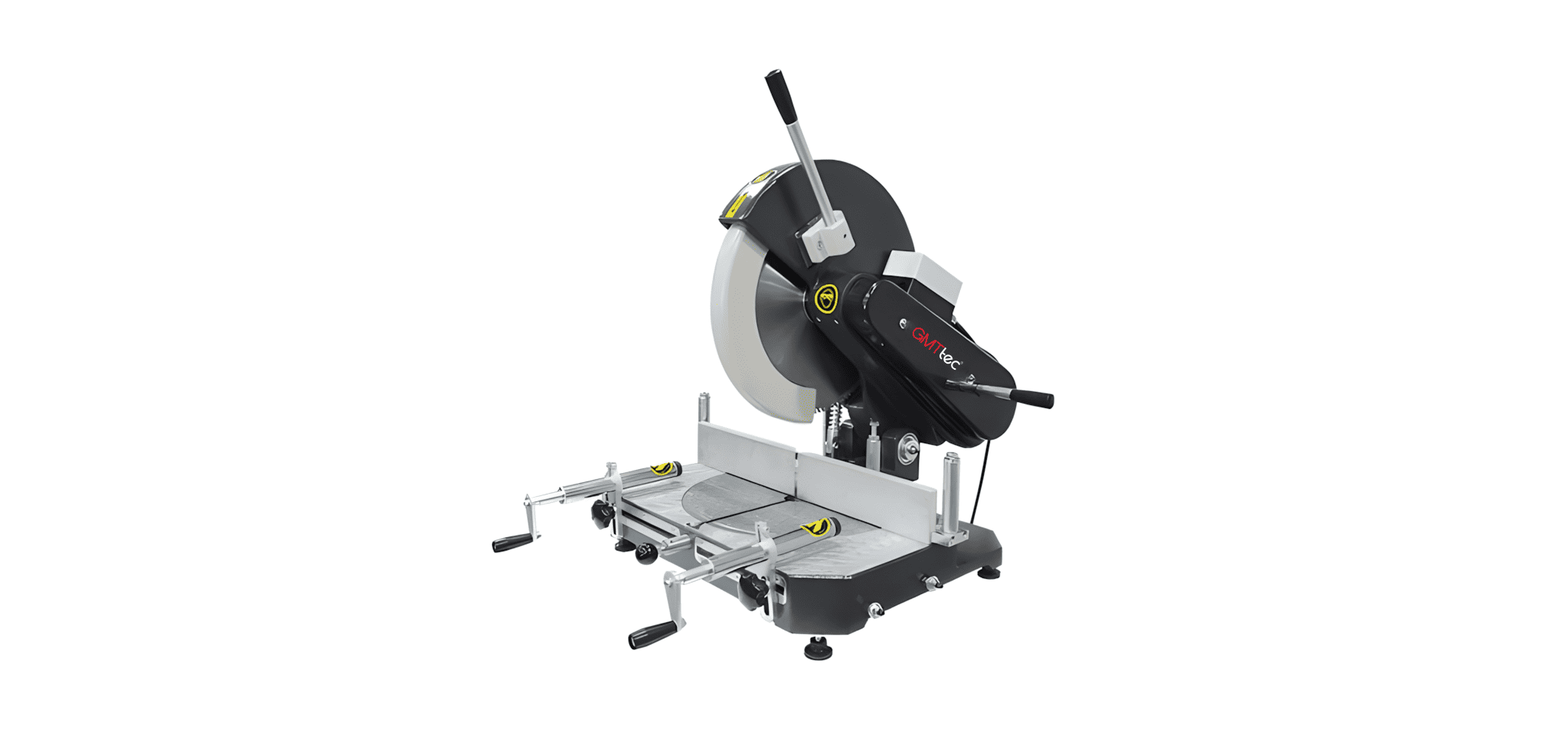

GPDK 400 | Mitre Saw Machine
Features
- Saw Blade: Carbide-tipped industrial unit.
- Cutting Kinematics: Manual overhead movement.
- Angulation: Fixed mechanical interval locking.
- Clamping: Multi-axis horizontal mechanical units.
- Body Structure: High-strength aluminum body.
- Protection Group: Spring-assisted guard assembly.
- Support: Standard profile conveyor set.
Technical Data
| Category | Feature | Value (GPDK 400) |
| Capacity | Saw Blade Diameter | 400 mm |
| 90° Square Cap. (Max) | 160 x 130 mm | |
| 45° Square Cap. (Max) | 125 x 125 mm | |
| Saw Feed System | Manual | |
| Motor & Power | Total Power Output | 1.5 kW |
| Rotational Speed | 2,800 rpm | |
| Infrastructure | Voltage Supply | 400 V |
| Frequency | 50 – 60 Hz | |
| Operating Pressure | 6 – 8 bar | |
| Air Consumption | 10 l/min | |
| Standard Conveyor | 2,000 mm | |
| Clamping System | Horizontal Mechanical | |
| Physical Dimensions | Machine Dimensions (WxLxH) | 700 x 790 x 600 mm |
| Net Weight | 92 kg | |
| Logistics | Shipping Dimensions (WxLxH) | 720 x 810 x 750 mm |
| Gross Weight | 100 kg |
