Description
Triple-unit processing solution for copy routing, automatic triple drilling, and water slot routing operations in aluminum and PVC profiles.
Products Groups
☰ Select a Product Category
▼

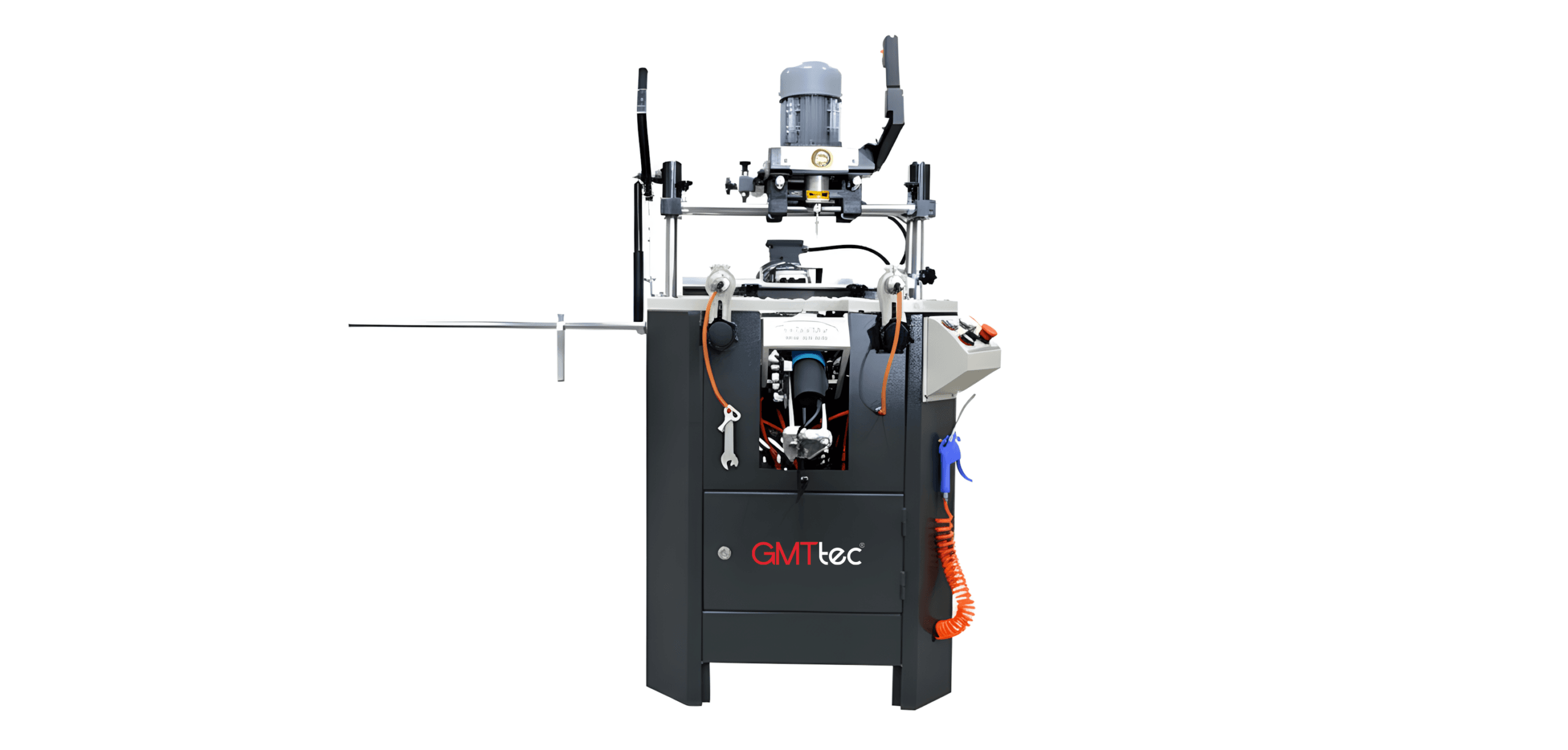

Aluminium Processing GFR 003 | Template Copy Router, Triple Drilling and Water Slot Machine
Features
- Unit Control: Independent operation of routing, triple drilling, and water slot motors.

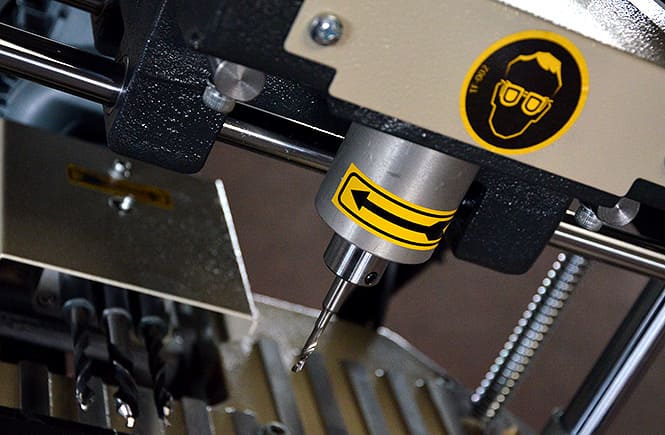

- Copy Routing: 1:1 template copying mechanism.
- Triple Drilling: Automatic horizontal drilling unit for handle hole preparation.
- Water Slot: High-speed processing unit for drainage slots.
- Cutting Tool: Drill bit set, water slot routing bit, and standard routing bit.
- Support: Profile support arm.
- Maintenance: Integrated air gun.
- Frame: Steel-sheet construction with vibration damping.
Technical Data
| Category | Feature | Value (GFR 003) |
| Capacity | X / Y / Z Axis Travel | 255 x 110 x 90 mm |
| Triple Drill Bit Set | 2 x 10 mm / 1 x 13 mm | |
| Water Slot Routing Bit | 1 pc x 5 mm | |
| Standard Routing Bit | 1 pc x 5 mm | |
| Motor & Power | Drill Motor Power | 1.1 kW (Asynchronous) |
| Router Motor Power | 0.75 kW (Asynchronous) | |
| Water Slot Motor Power | 0.55 kW (Asynchronous) | |
| Power Supply | 400 V | |
| Infrastructure | Frequency | 50 / 60 Hz |
| Operating Pressure | 6 – 8 bar | |
| Cleaning Kit | Integrated Air Blow Gun | |
| Standard Support | Profile Support Arm | |
| Physical Dimensions | Machine Dimensions (WxLxH) | 850 x 830 x 1,420 mm |
| Net Weight | 137 kg | |
| Logistics | Shipping Dimensions (WxLxH) | 870 x 850 x 1,570 mm |
| Gross Weight | 150 kg |
