Description

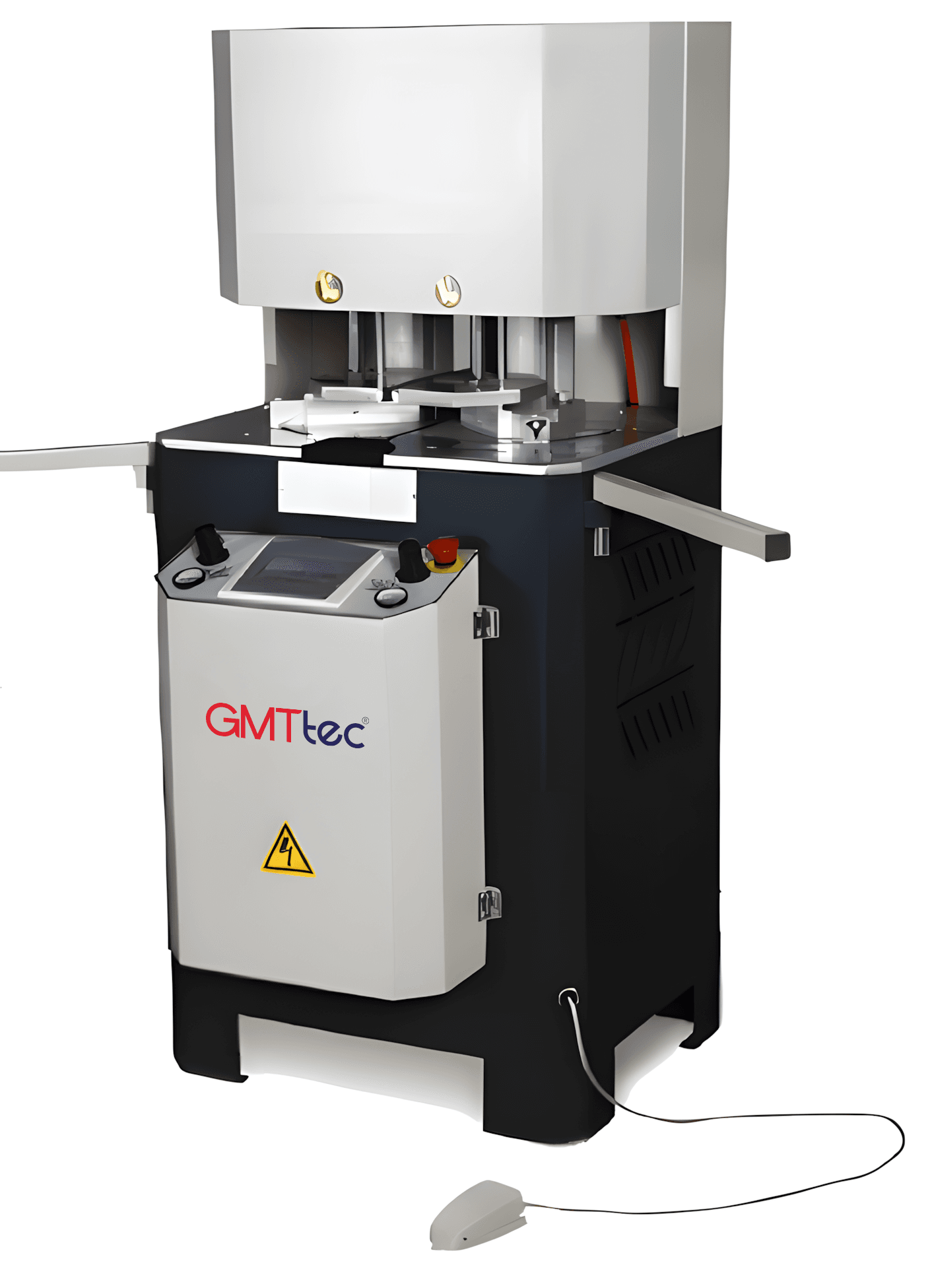

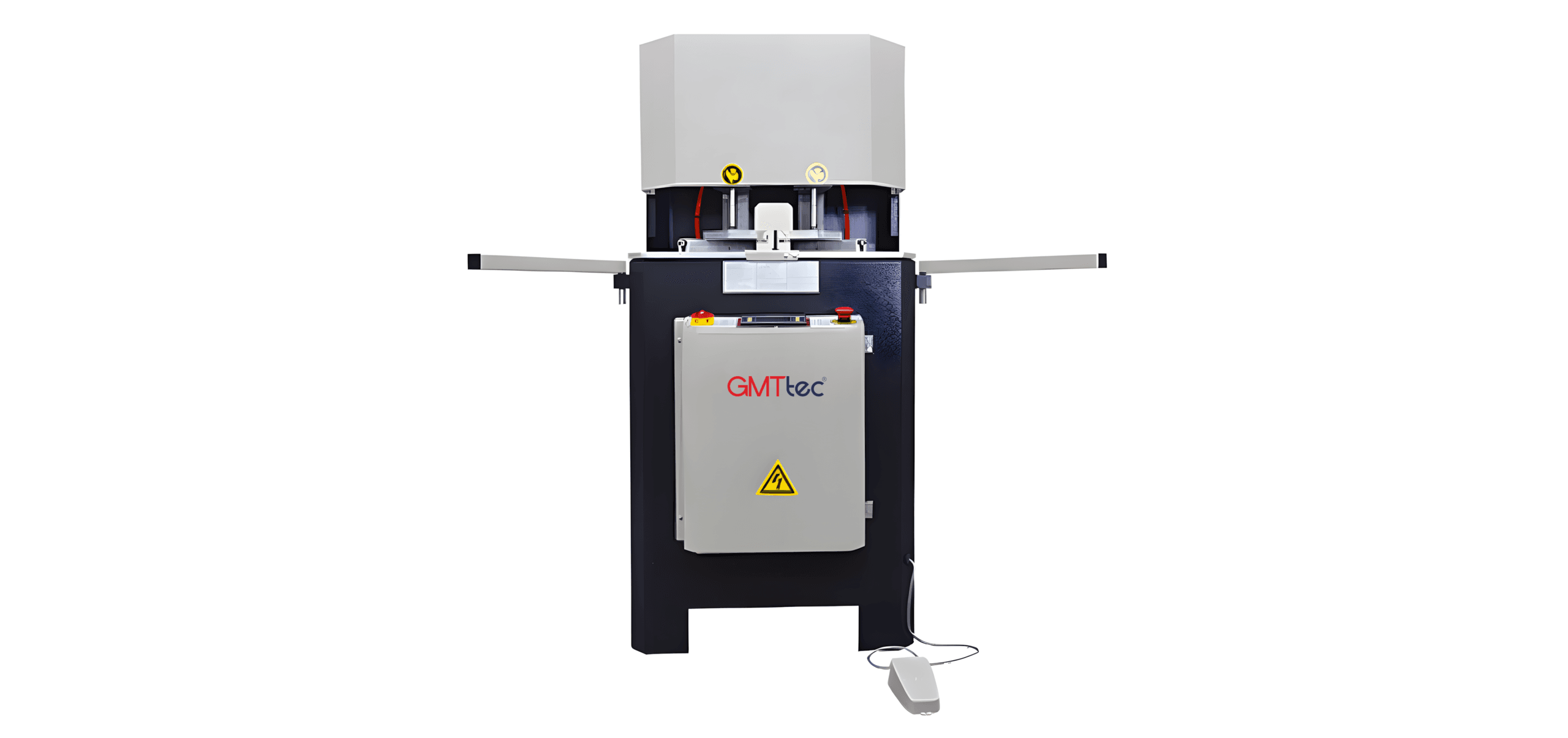

Professional single-head architecture for heat welding and corner assembly of PVC profiles.
Products Groups
☰ Select a Product Category
▼
Aluminium Processing GTM | G0TM | GNTM | Single-Corner Welding Machines
Features
- Thermal Cycle Management: PLC-controlled digital monitoring.

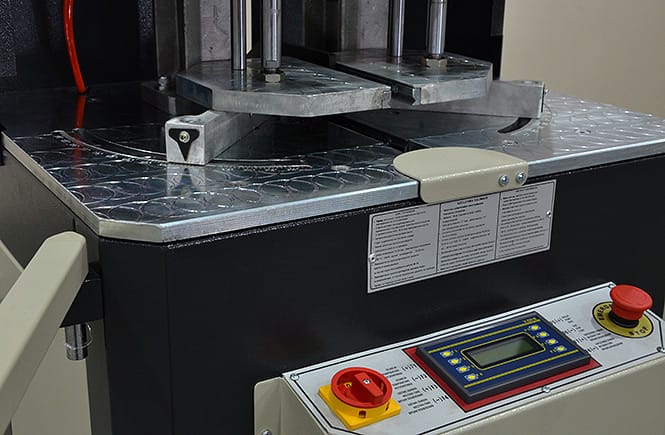

- Control Interface: Touchscreen HMI or digital PLC unit.
- Thermostatic Infrastructure: Real-time heating plate regulation.
- Welding Capacity: Maximum 120 mm profile height.
- Process Control: Independent adjustment of melting, welding time, and pressure.
- Clamping: Foot-pedal-operated pneumatic feature for independent profile stabilization.
- Profile Support: Left and right alignment arms for long profile stabilization.
- Table Kinematics: Synchronized joint strength system.
- Voltage Protection: Integrated digital safety relay.
- Frame: Heavy-duty vibration-damping chassis.
- Maintenance: Rapid Teflon replacement and easy-clean heating plate system.
- Operation Mode: Automated welding cycle start and finish.

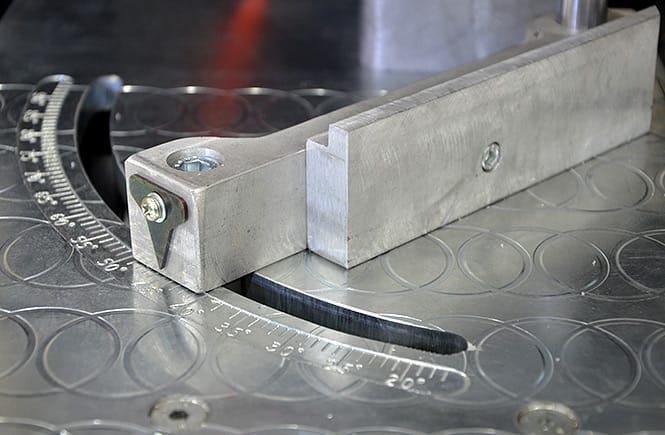

- Angulation: Precision welding across 30° – 180° range.
- Molds: Precision-engineered practical replacement system.
Technical Data
| Category | Feature | GTM | G0TM | GNTM |
| Capacity | Welding Mode | Standard | Zero-Seam | Zero-Seam |
| Profile Height Cap. | 120 mm | 120 mm | 120 mm | |
| Max. Profile Width | 140 mm | 140 mm | 140 mm | |
| Welding Angle Range | 30° – 180° | 30° – 180° | 30° – 180° | |
| Motor & Power | Control Interface | Digital PLC | Digital PLC | 7-inch Touch PLC |
| Heating Power | 2.0 kW | 2.0 kW | 2.0 kW | |
| Temperature Range | 0° – 300°C | 0° – 300°C | 0° – 300°C | |
| Infrastructure | Voltage Supply | 230 V | 230 V | 230 V |
| Frequency | 50 / 60 Hz | 50 / 60 Hz | 50 / 60 Hz | |
| Operating Pressure | 6 – 8 bar | 6 – 8 bar | 6 – 8 bar | |
| Support Arms | Included | Included | Included | |
| Physical Dimensions | System Dim. (WxLxH) | 770 x 640 x 1,450 mm | 770 x 640 x 1,450 mm | 770 x 640 x 1,450 mm |
| Net Weight | 140 kg | 145 kg | 145 kg | |
| Logistics | Shipping Dim. (WxLxH) | 780 x 670 x 1,600 mm | 780 x 670 x 1,600 mm | 780 x 670 x 1,600 mm |
| Gross Weight | 150 kg | 155 kg | 155 kg |
