Aluminium Processing

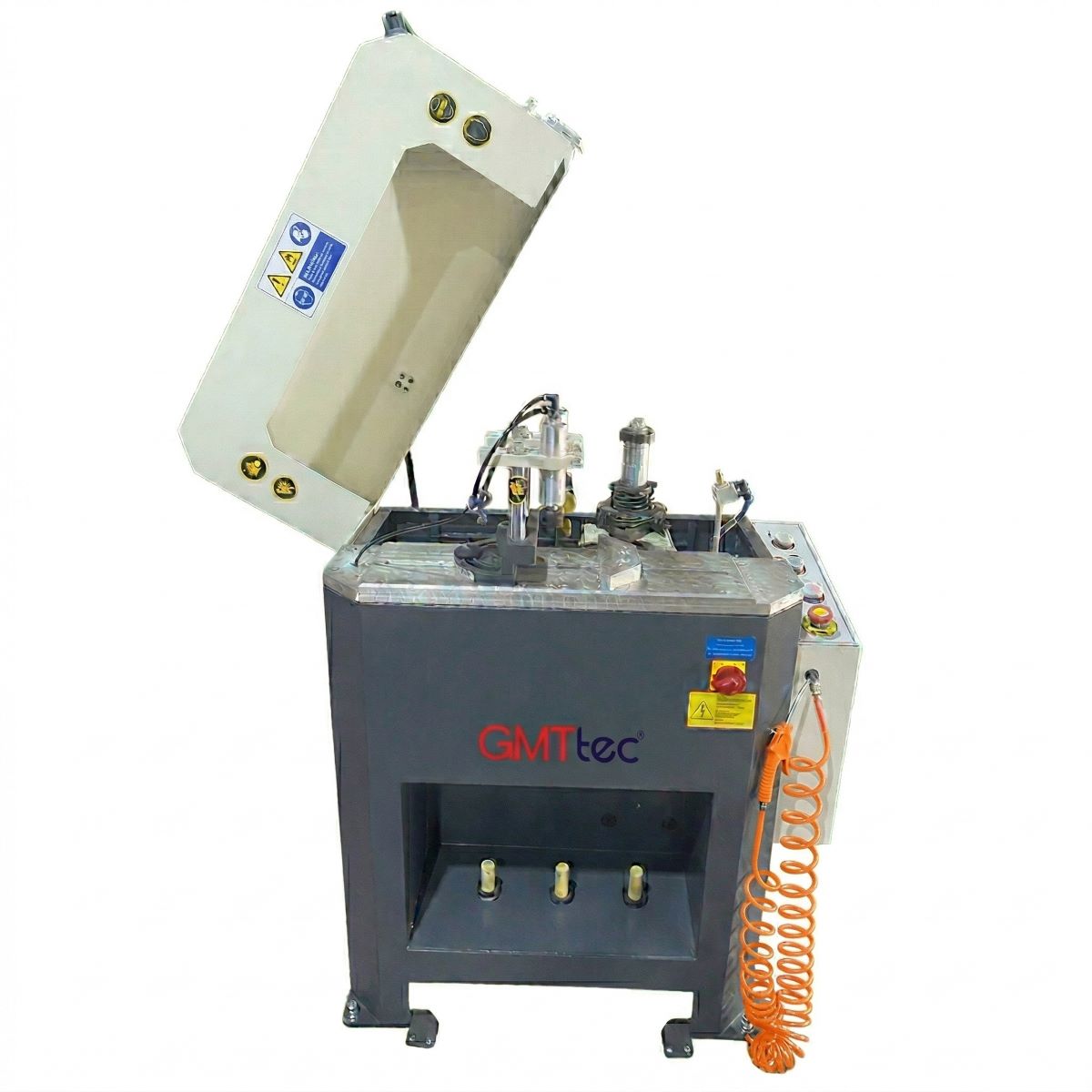

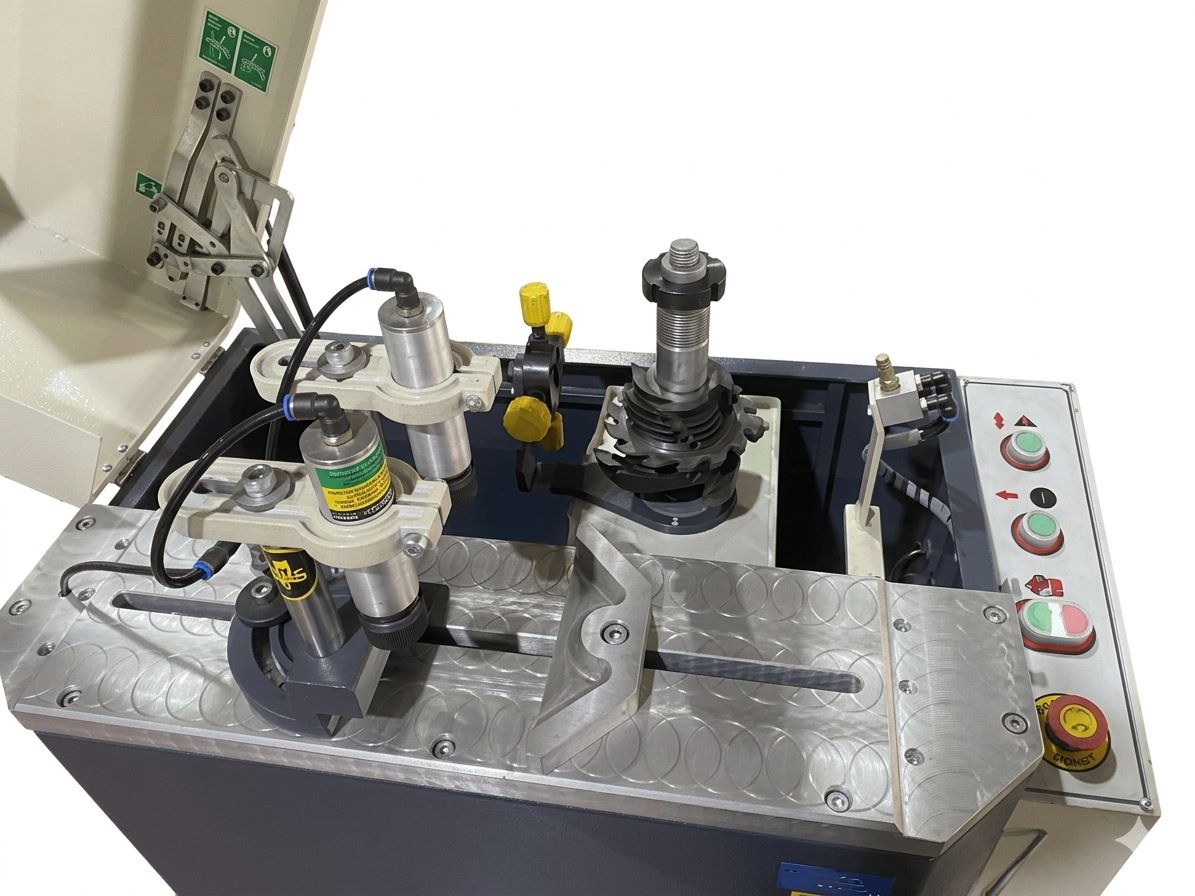

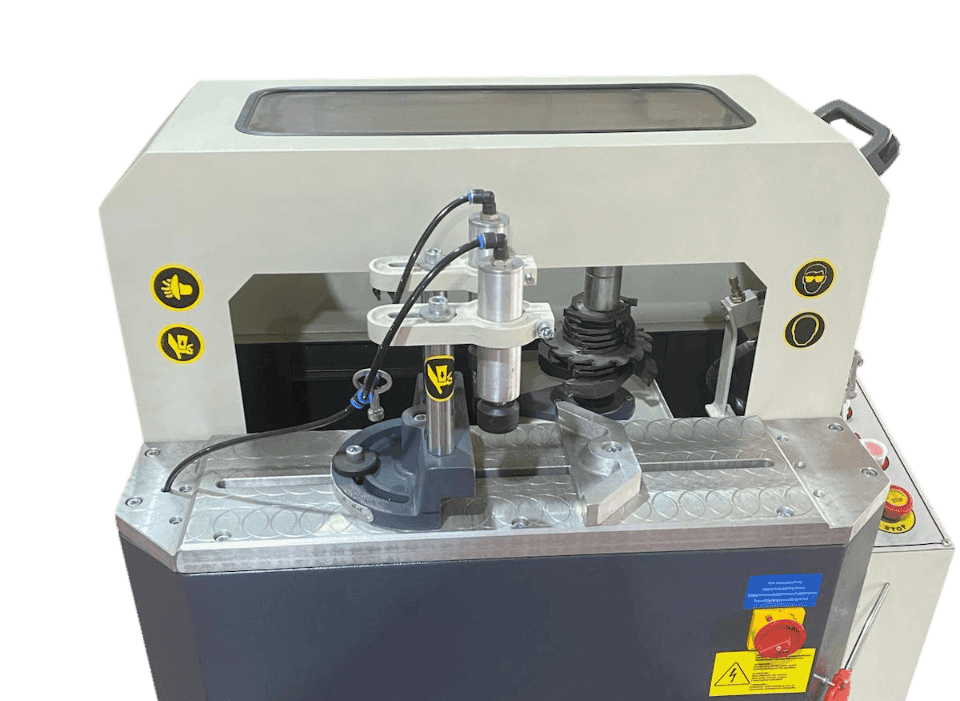

GOK 004 | Automatic End Milling Machine
Features
- Quick-Change Blade: Rapid profile transition system.
- Rotary Positioning: Four-station rotary stopper.
- Operation Cycle: Automated pneumatic milling.
- Kinematic Flexibility: Multi-angle milling.
- Clamping: Vertical pneumatic units.
- Frame: Vibration-damping steel construction.
- Maintenance: Integrated air blow gun.
- Blade Set: Manufacturer-approved standard cutters.
- Tooling: Universal shaft architecture.
Technical Data
| Category | Value (GOK 004) |
| Capacity | |
| Milling Angle Range | +45° / -45° |
| Max. Machining Height | 100 mm |
| Max. Machining Width | 210 mm |
| Motor & Power | |
| Main Motor Power | 1.1 kW |
| Main Motor Speed | 2,800 rpm |
| Infrastructure | |
| Electrical Supply | 400 V |
| Operating Pressure | 6 – 8 bar |
| Air Blow Gun | Integrated |
| Physical Dimensions | |
| Machine Dim. (WxLxH) | 1,150x850x1,250 mm |
| Net Weight | 148 kg |
| Logistics | |
| Shipping Dim. (WxLxH) | 1,250x950x1,400 mm |
| Gross Weight | 175 kg |
