Manual cold forming of industrial steel sections and heavy-duty pipes via high-torque gear transmission.
Products Groups
☰ Select a Product Category
▼
Aluminium Processing

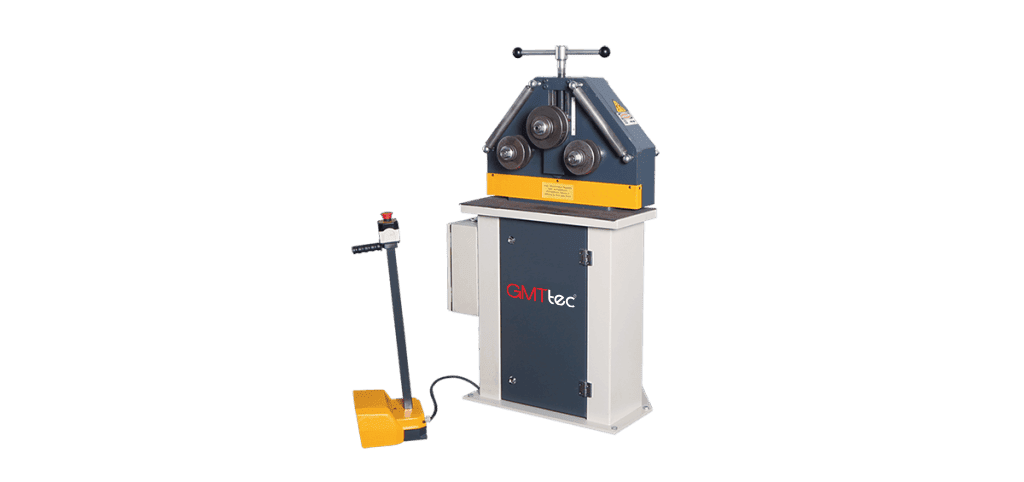

GTB 30 | Profile and Pipe Bending Machine
Features
- Drive System: Gear-driven bottom rolls.
- Transmission: Dual-speed motor with direct reducer.
- Shafts: Induction-hardened precision steel units.
- Frame: Reinforced steel geometric stability structure.
- Kinematics: Dual-position (Horizontal/Vertical) chassis.
- Alignment: Manual rapid-adjust side guides.
- Rolls: Friction-reduction free upper roll.
Technical Data
| Category | Feature | Value (GTB 30) |
| Capacity | Roll Shaft Diameter | 30 mm |
| Upper Roll Diameter | 148 mm | |
| Bottom Roll Diameter | 118 mm | |
| Material Working Speed | 2 – 4 m/min | |
| Motor & Power | Main Motor Power | 0.7 – 0.85 kW |
| Infrastructure | Control & Drive | Gear-Driven / Dual-Speed |
| Voltage Supply | 400 V | |
| Frequency | 50 / 60 Hz | |
| Physical Dimensions | Machine Dimensions (WxLxH) | 800 x 600 x 1,450 mm |
| Net Weight | 220 kg | |
| Logistics | Shipping Dimensions (WxLxH) | 820 x 620 x 1,600 mm |
| Gross Weight | 235 kg |
