High-precision metal profile and pipe cutting via hydro-pneumatic operating system.
Products Groups
☰ Select a Product Category
▼
Aluminium Processing

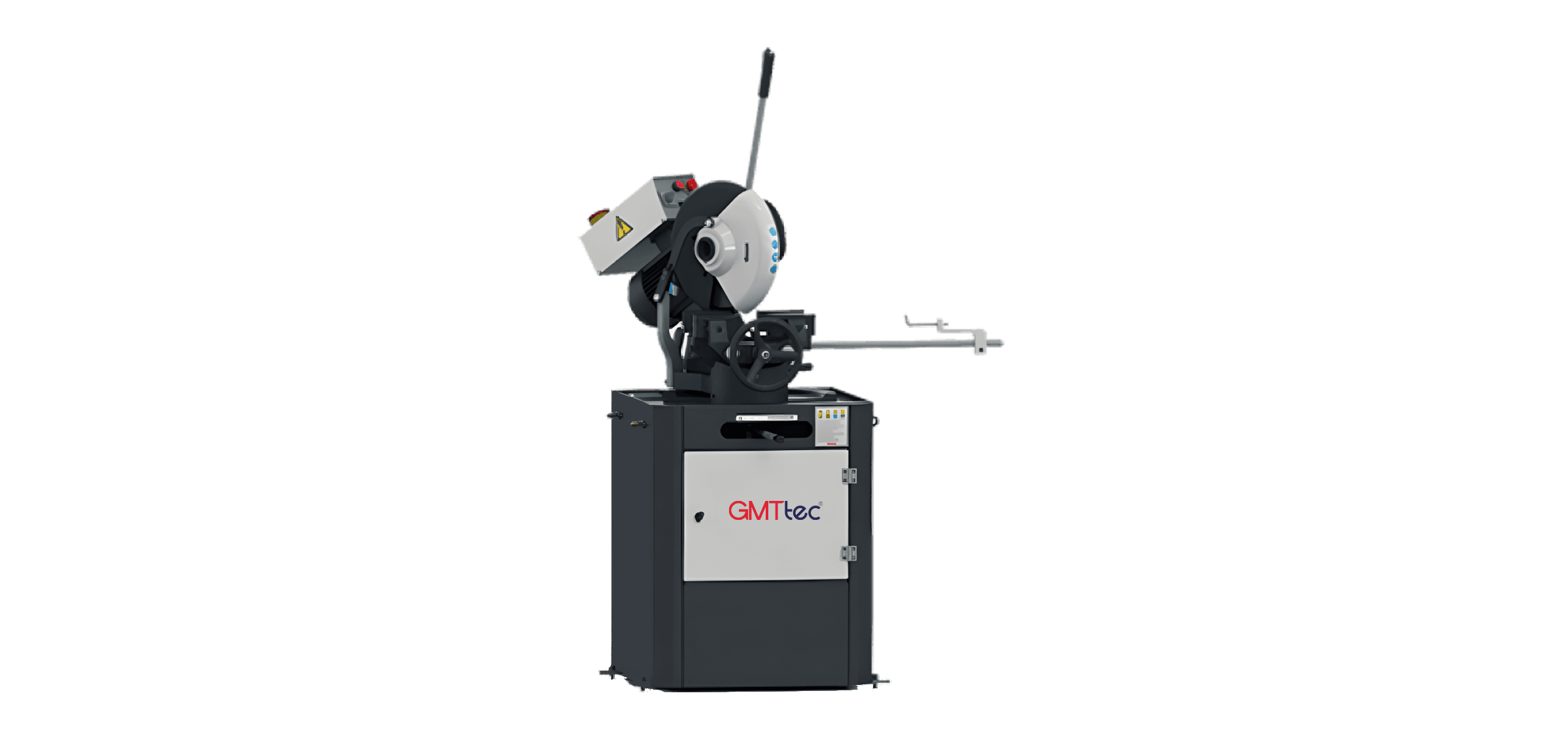

GTT 315 Y | Semi-Automatic Circular Saw Machine
Features
- Operating System: Hydro-pneumatic control governing semi-automatic saw descent.
- Feed Rate Control: Adjustable saw descent speed module for material density optimization.
- Clamping: Integrated horizontal pneumatic pressure cylinders.
- Transmission: Reinforced gear-driven system with dual-speed motor.
- Backlash Adjustment: Specialized blade backlash removal system.
- Cooling: Integrated circulation pump and tank for soluble oil.
- Maintenance: Integrated air blow gun system.
- Frame: Reinforced machine body for high-torque stability.
Technical Data
| Category | Value (GTT 315 Y) |
| Capacity | |
| Blade Diameter | 315 mm |
| Saw Blade | Optional |
| 90° Cutting (Round) | 105 mm |
| 90° Cutting (Sq / Rect) | 85 mm / 120 x 70 mm |
| 45° Cutting (Round) | 90 mm |
| Motor & Power | |
| Main Motor Power | 1.5 / 1.9 kW |
| Blade Speed | 45 / 90 rpm |
| Infrastructure | |
| Control & Drive | Hydro-Pneumatic / Semi-Auto |
| Air Blow Gun | Integrated |
| Voltage Supply | 400 V |
| Physical Dimensions | |
| Machine Dimensions (WxLxH) | 1,200 x 730 x 1,410 mm |
| Net Weight | 230 kg |
| Logistics | |
| Shipping Dimensions (WxLxH) | 1,220 x 750 x 1,560 mm |
| Total Gross Weight | 245 kg |
