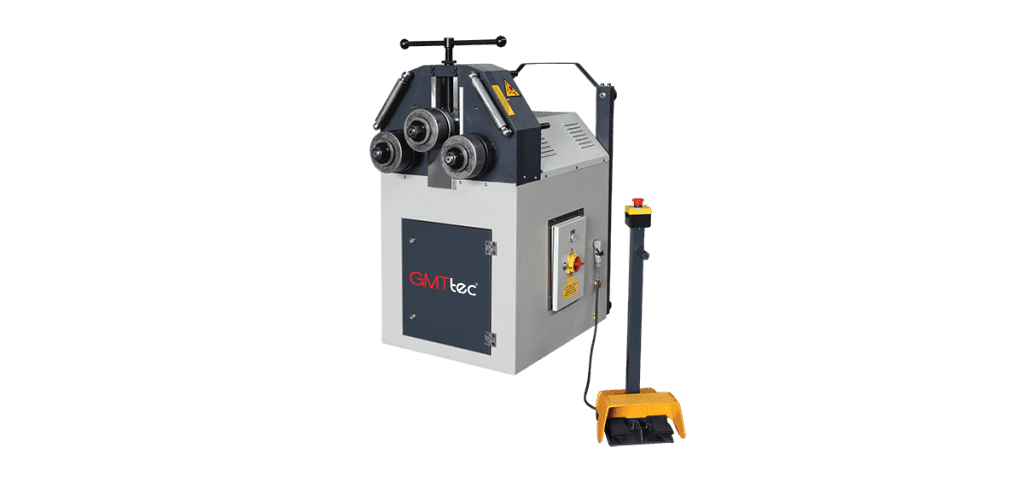

GTB 35 | Profile and Pipe Bending Machine
Features
- Drive System: Gear-driven bottom rolls.
- Transmission: High-performance motor with direct reducer.
- Shafts: Induction-hardened precision steel units.
- Frame: Deflection-resistant reinforced steel structure.
- Kinematics: Dual-position (Horizontal/Vertical) chassis.
- Alignment: Manual rapid-adjust side guides.
- Bearings: Heavy-duty load-capacity roller units.
Technical Data
| Category | Feature | Value (GTB 35) |
| Capacity | Roll Shaft Diameter | 50 mm |
| Upper Roll Diameter | 155 mm | |
| Bottom Roll Diameter | 155 mm | |
| Material Working Speed | 4.5 m/min | |
| Motor & Power | Main Motor Power | 1.5 kW |
| Infrastructure | Control & Drive | Gear-Driven / High-Torque |
| Voltage Supply | 400 V | |
| Frequency | 50 / 60 Hz | |
| Physical Dimensions | Machine Dimensions (WxLxH) | 1,000 x 750 x 1,400 mm |
| Net Weight | 400 kg | |
| Logistics | Shipping Dimensions (WxLxH) | 1,020 x 770 x 1,550 mm |
| Total Gross Weight | 416 kg |
