Triple-unit processing solution for synchronized water drainage channel machining in aluminum and PVC profiles.
Products Groups
☰ Select a Product Category
▼
Aluminium Processing

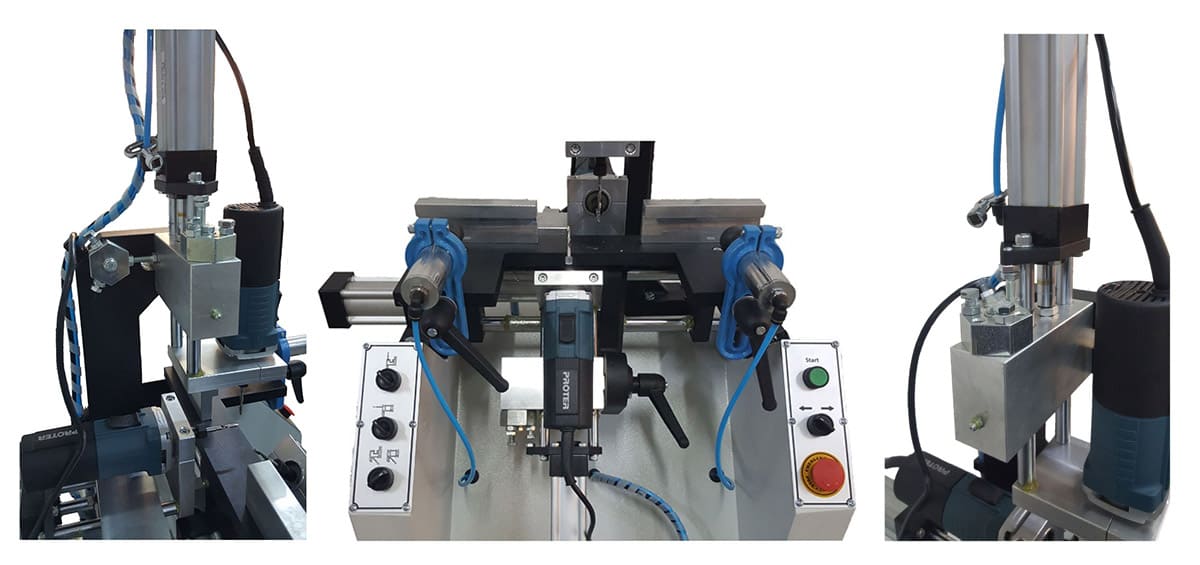

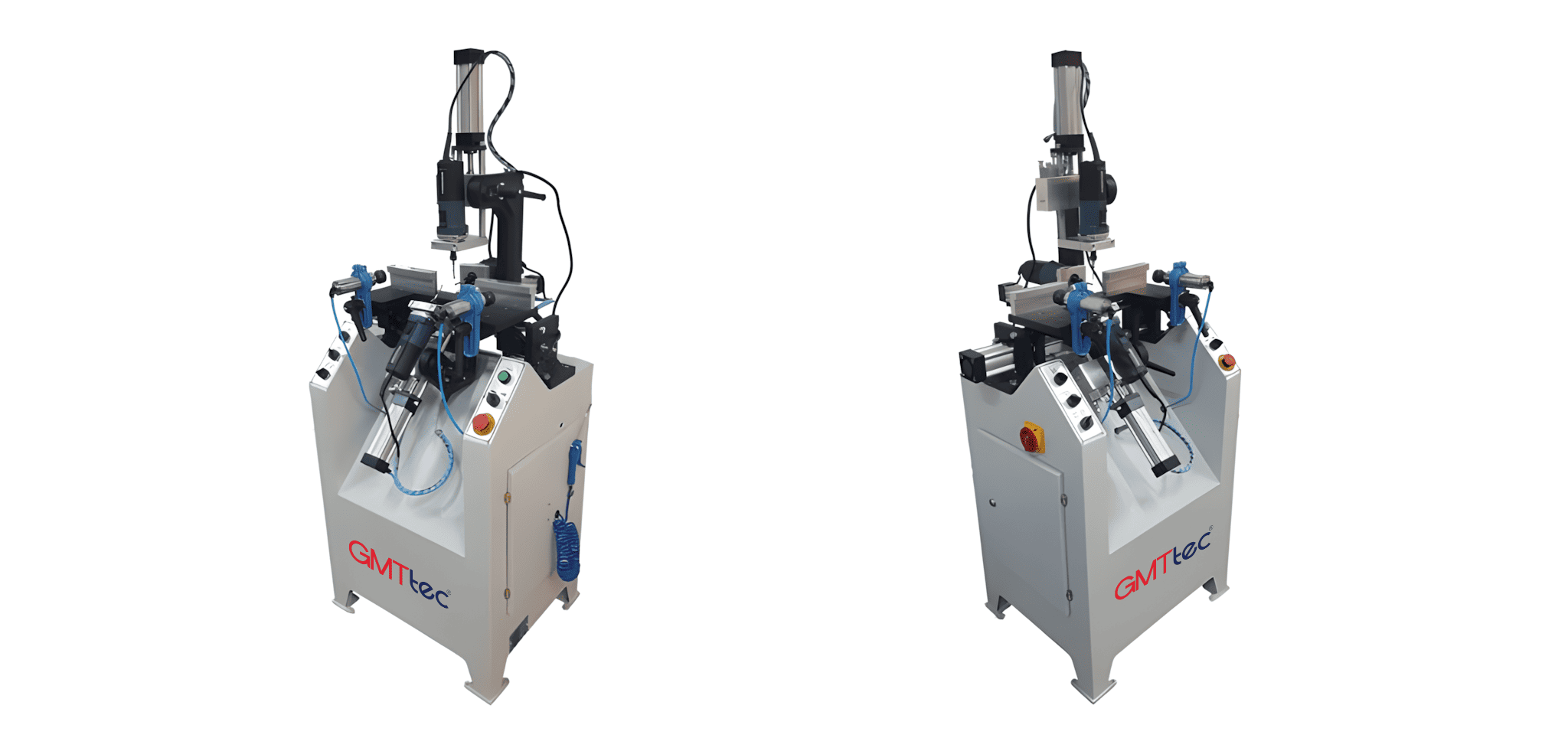

GTSA 3 | Triple Water Discharge Machine
Features
- Water Slot: Specialized triple-unit for multi-plane machining.
- Unit Control: Independent motor operation for optimized cycles.
- Cutting Tool: High-performance water slot routing bits.

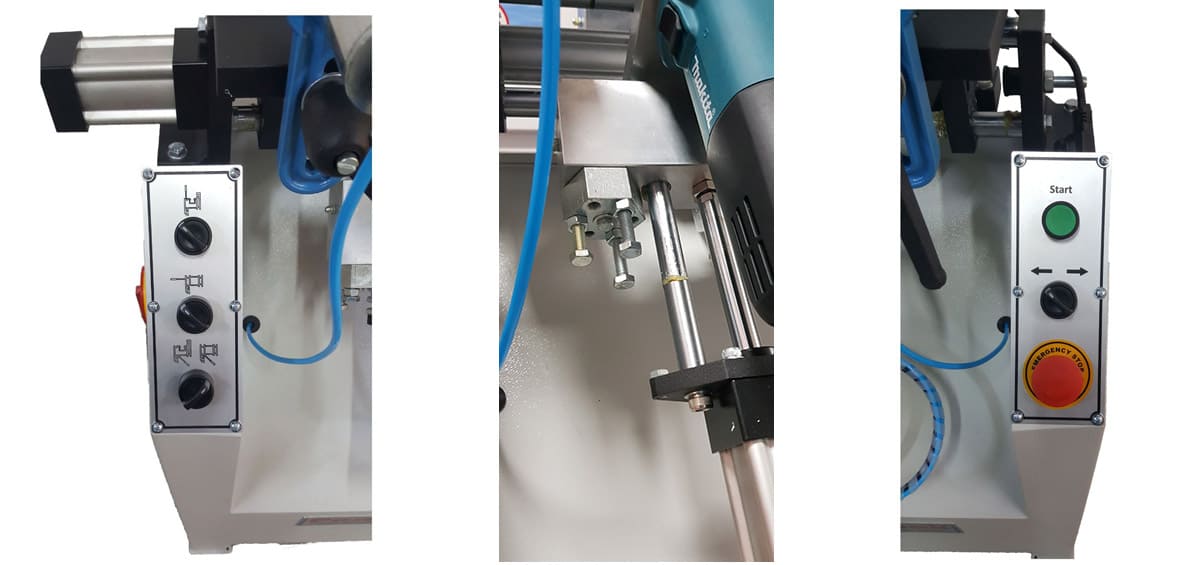

- Clamping Group: Dual horizontal pneumatic cylinders.
- Spindle Technology: High-speed transmission for burr-free surfaces.
- Frame: Heavy-duty steel-sheet vibration damping structure.
- Maintenance: Integrated air blow gun.
Technical Data
| Category | Feature | Value (GTSA 3) |
| Capacity | Number of Processing Units | 3 Units |
| Water Slot Routing Bit | 3 Units x 5 mm | |
| Motor & Power | Total Power Output | 0.55 kW |
| Infrastructure | Voltage Supply | 230 V |
| Frequency | 50 / 60 Hz | |
| Operating Pressure | 6 bar | |
| Air Consumption Volume | 2.20 L/min | |
| Air Blow Gun | Integrated | |
| Physical Dimensions | Machine Dimensions (WxLxH) | 710 x 810 x 1,400 mm |
| Net Weight | 117 kg | |
| Logistics | Shipping Dimensions (WxLxH) | 730 x 830 x 1,550 mm |
| Gross Weight | 132 kg |
