Single-unit copy routing system designed for lock, handle, and accessory slots in aluminum and PVC profiles.
Products Groups
☰ Select a Product Category
▼
Aluminium Processing

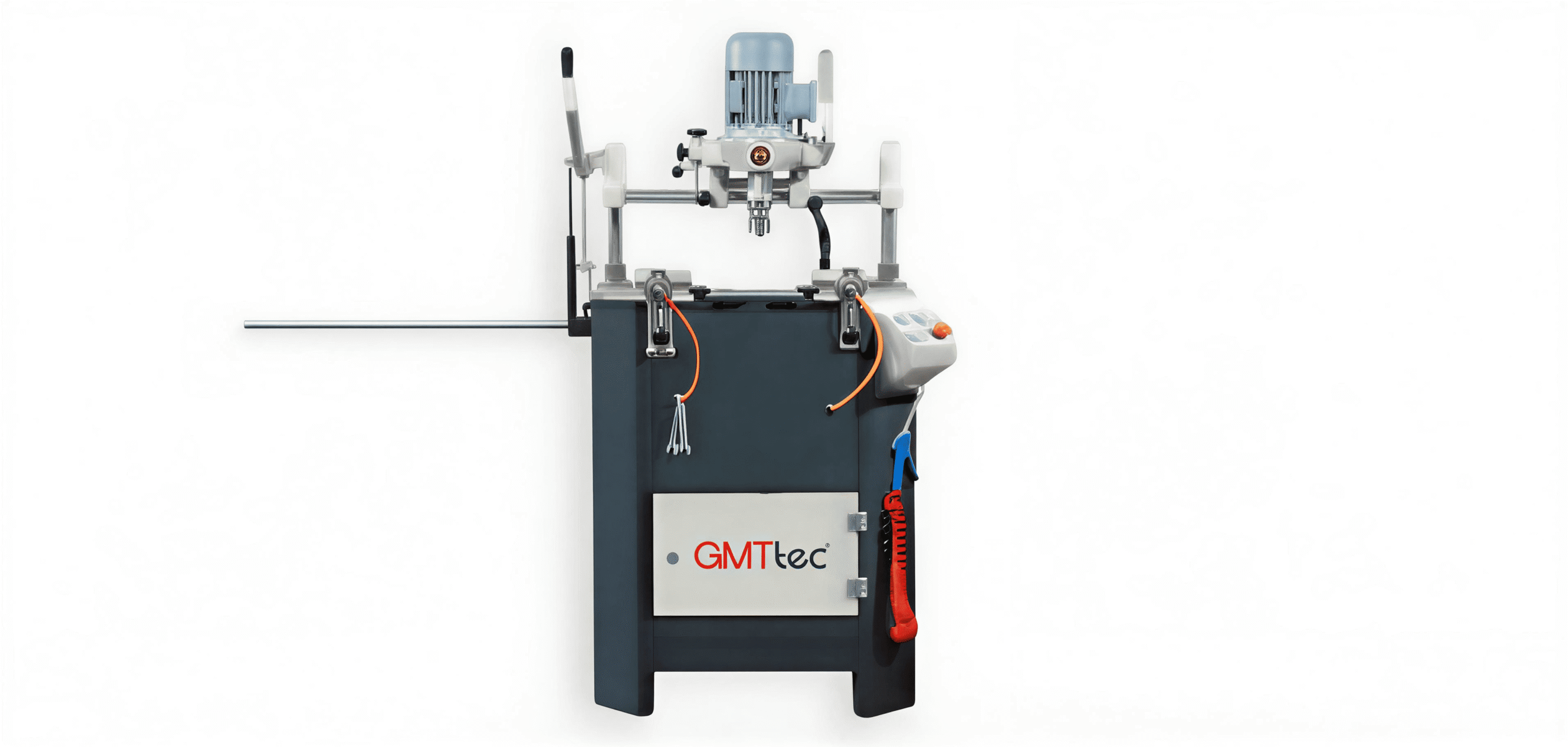

GFR 001 | Template Copy Router Machine
Features
- Copy Routing: 1:1 template copying mechanism.
- Cutting Tool: Standard routing bit.
- Support: Profile support arm.
- Maintenance: Integrated air gun.
- Frame: Steel-sheet construction with vibration damping
Technical Data
| Category | Feature | Value (GFR 001) |
| Capacity | X / Y / Z Axis Travel | 255 x 110 x 90 mm |
| Copying Ratio | 1:1 Template | |
| Standard Routing Bit | 1 pc x 5 mm | |
| Motor & Power | Power Output | 0.75 kW |
| Drive Type | Asynchronous | |
| Power Supply | 400 V | |
| Infrastructure | Spindle Speed | 15,350 rpm |
| Operating Pressure | 6 – 8 bar | |
| Air Consumption | 5 L/min | |
| Cleaning Kit | Integrated Air Blow Gun | |
| Standard Support | Profile Support Arm | |
| Physical Dimensions | Machine Dimensions (WxLxH) | 660 x 830 x 1,420 mm |
| Net Weight | 100 kg | |
| Logistics | Shipping Dimensions (WxLxH) | 870 x 850 x 1,570 mm |
| Gross Weight | 113 kg |
