Description
Integration of copy routing and automatic triple hole drilling for handle preparations in aluminum and PVC profiles in a single processing center.
Products Groups
☰ Select a Product Category
▼

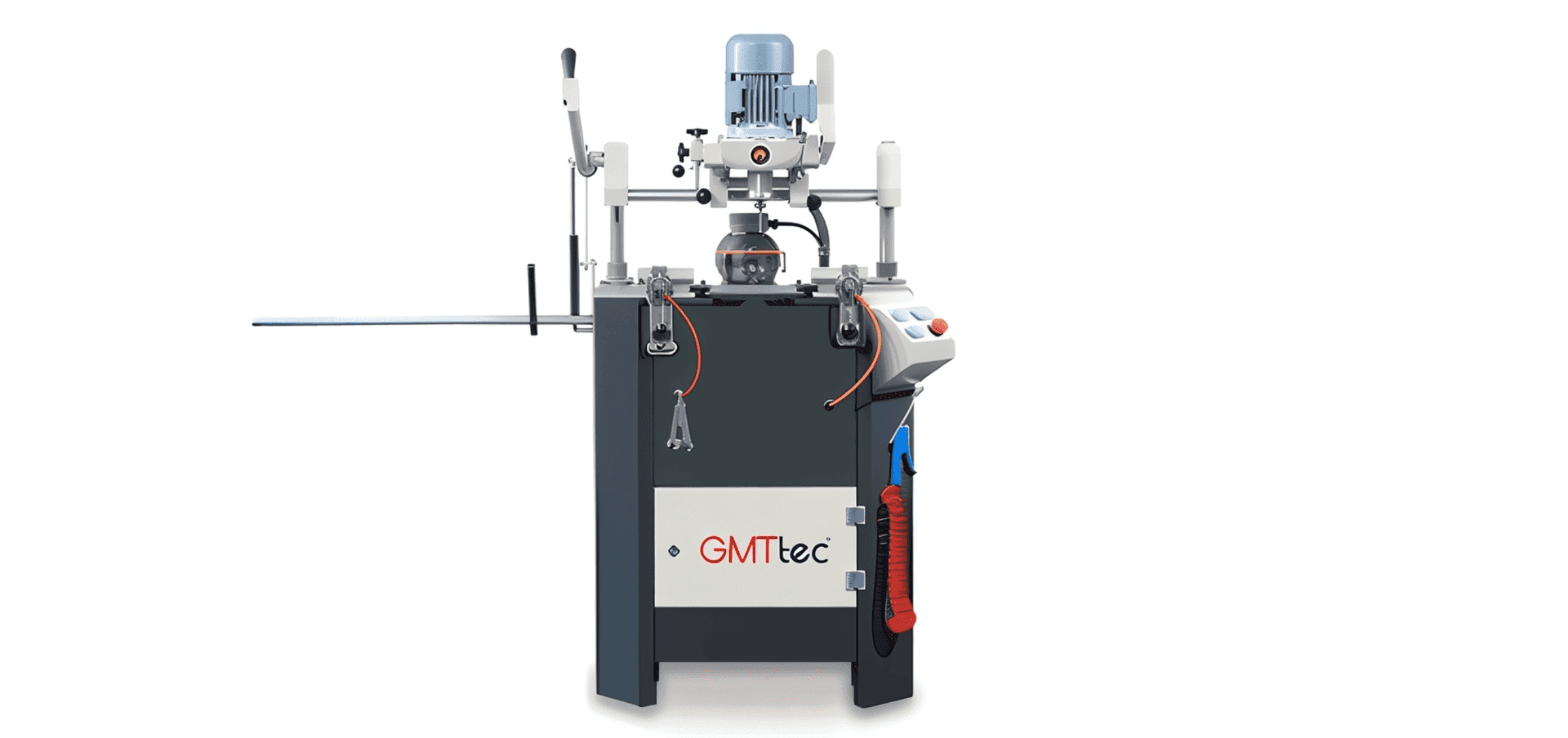

Aluminium Processing GFR 002 | Template Copy Router and Triple Drilling Machine
Features
- Unit Control: Independent operation of copy routing and triple drilling motors.
- Copy Routing: 1:1 template copying mechanism.
- Triple Drilling: Automatic horizontal drilling unit for handle hole preparation.
- Cutting Tool: Drill bit set and standard routing bit.
- Support: Profile support arm.
- Maintenance: Integrated air gun.
- Frame: Steel-sheet construction with vibration damping
Technical Data
| Category | Feature | Value (GFR 002) |
| Capacity | X / Y / Z Axis Travel | 255 x 110 x 90 mm |
| Triple Drill Bit Set | 2 x 10 mm / 1 x 12 mm | |
| Standard Routing Bit | 1 pc x 5 mm | |
| Motor & Power | Drill Motor Power | 1.1 kW (Asynchronous) |
| Router Motor Power | 0.75 kW (Asynchronous) | |
| Power Supply | 400 V | |
| Infrastructure | Spindle Speed | 15,350 rpm |
| Operating Pressure | 6 – 8 bar | |
| Air Consumption | 5 L/min | |
| Cleaning Kit | Integrated Air Blow Gun | |
| Standard Support | Profile Support Arm | |
| Physical Dimensions | Machine Dimensions (WxLxH) | 690 x 830 x 1,420 mm |
| Net Weight | 120 kg | |
| Logistics | Shipping Dimensions (WxLxH) | 870 x 850 x 1,570 mm |
| Gross Weight | 133 kg |
