Portable manual end-milling of aluminum and PVC profiles for on-site operations.
Products Groups
☰ Select a Product Category
▼
Aluminium Processing

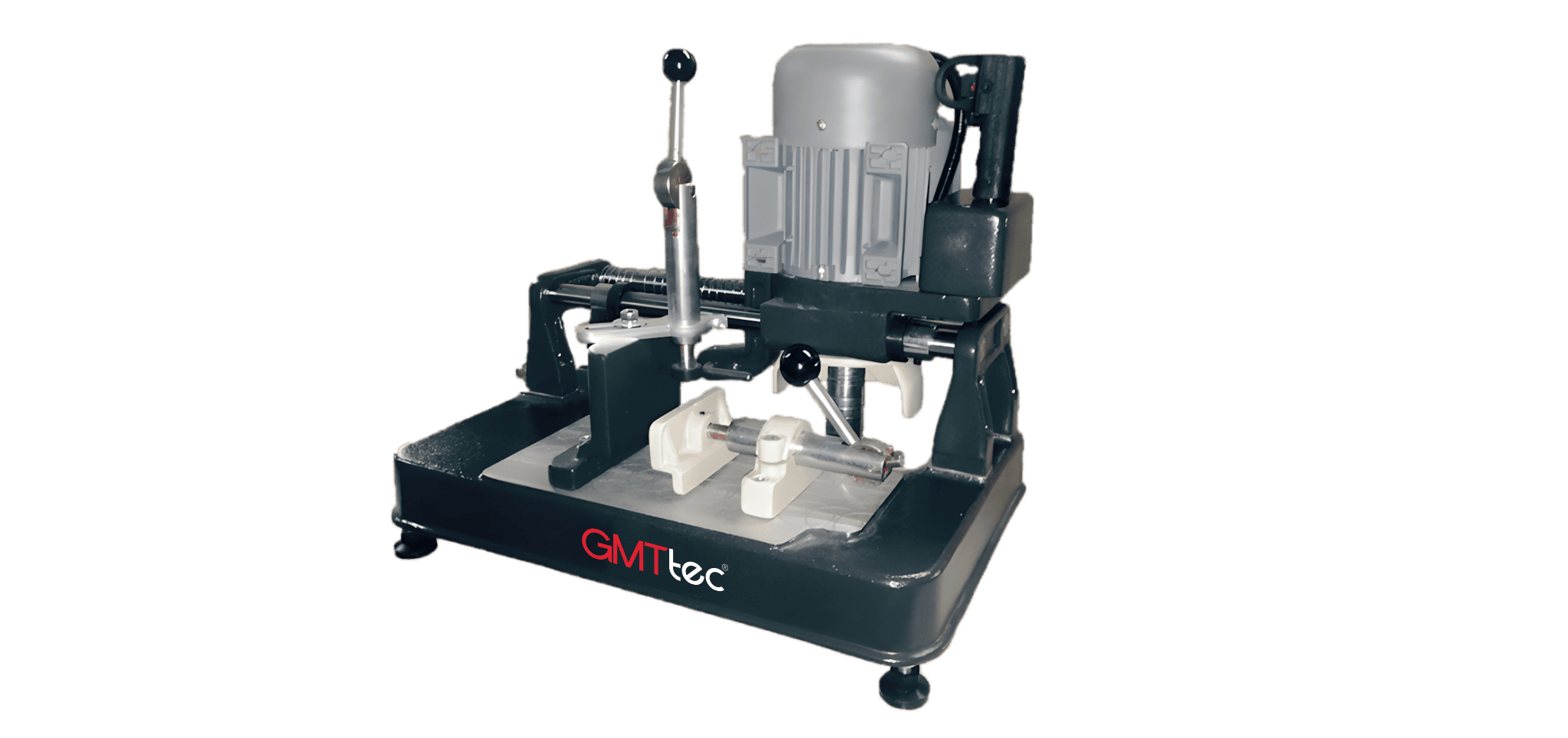

GOPM | Portable End Milling Machine
Features
- Cutting Kinematics: Ergonomic guided manual feed.
- Guidance: Hardened chrome-plated shafts.
- Clamping: Vertical manual units.
- Depth Control: Adjustable mechanical depth.
- Body Structure: High-strength aluminum body.
- Blade Set: Manufacturer-approved standard cutters.
- Tooling: Universal shaft architecture.
Technical Data
| Category | Feature | Value (GOPM) |
| Capacity | Blade Ext. Dia (Max) | 140 mm |
| Max. Working Height | 210 mm | |
| Max. Cutting Height | 100 mm | |
| Motor & Power | Power Output | 1.1 kW |
| Rotational Speed | 2,800 rpm | |
| Infrastructure | Voltage Supply (Opt) | 230 V / 400 V |
| Frequency | 50 – 60 Hz | |
| Air Blow Gun | Integrated | |
| Physical Dimensions | Machine Dim. (WxLxH) | 500 x 600 x 510 mm |
| Net Weight | 38 kg | |
| Logistics | Shipping Dim. (WxLxH) | 520 x 620 x 660 mm |
| Gross Weight | 45 kg |
