High-precision copy routing system with dynamic speed control and servo-driven spindle for aluminum and PVC profiles.
Products Groups
☰ Select a Product Category
▼
Aluminium Processing

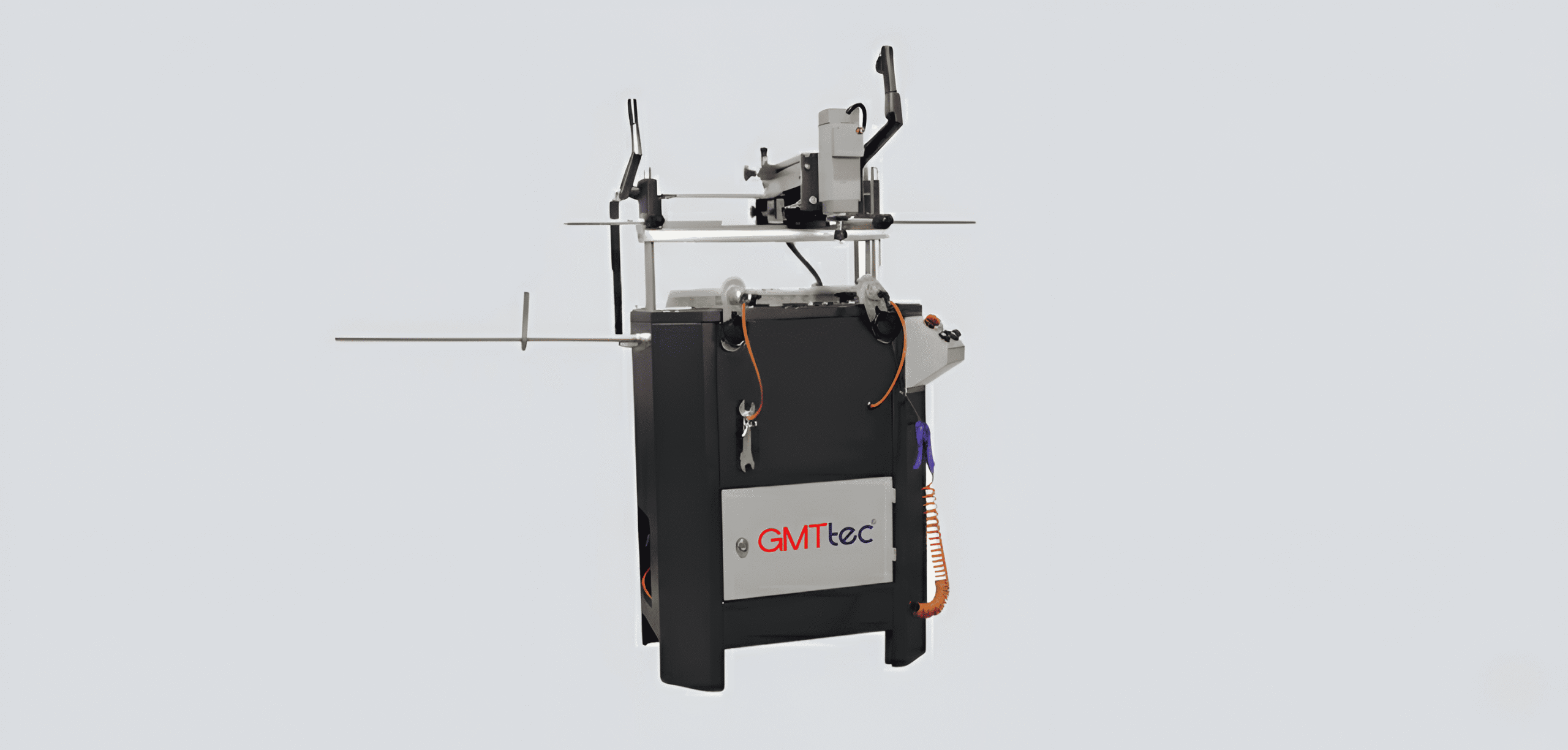

GFRH 001 | Servo-Controlled Copy Router Machine
Features
- Precision Servo Drive: High-performance servo motor for dynamic speed and positioning.
- Copy Routing: 1:1 template copying mechanism.
- Cutting Tool : Standard routing bit.
- Support: Profile support arm.
- Maintenance: Integrated air blow gun.
- Frame: Steel-sheet construction with vibration damping.
Technical Data
| Category | Feature | Value (GFRH 001) |
| Capacity | X / Y / Z Axis Travel | 255 x 110 x 90 mm |
| Standard Routing Bit | 1 pc x 5 mm | |
| Motor & Power | Power Output | 1.1 kW |
| Control & Drive | Servo-Controlled | |
| Power Supply | 400 V | |
| Infrastructure | Spindle Speed | 15,350 rpm (Dynamic) |
| Operating Pressure | 6 – 8 bar | |
| Frequency | 50 / 60 Hz | |
| Cleaning Kit | Integrated Air Blow Gun | |
| Standard Support | Profile Support Arm | |
| Physical Dimensions | Machine Dimensions (WxLxH) | 660 x 830 x 1,420 mm |
| Net Weight | 90 kg | |
| Logistics | Shipping Dimensions (WxLxH) | 870 x 850 x 1,570 mm |
| Gross Weight | 103 kg |
