Metal Processing
PVC Processing Description
Geniş açılı kesim imkanı sağlayan döner gövde mimarisine sahip alüminyum, PVC, pirinç ve ahşap profillerin elle kesilmesi.
Products Groups
☰ Select a Product Category
▼
Aluminium Processing

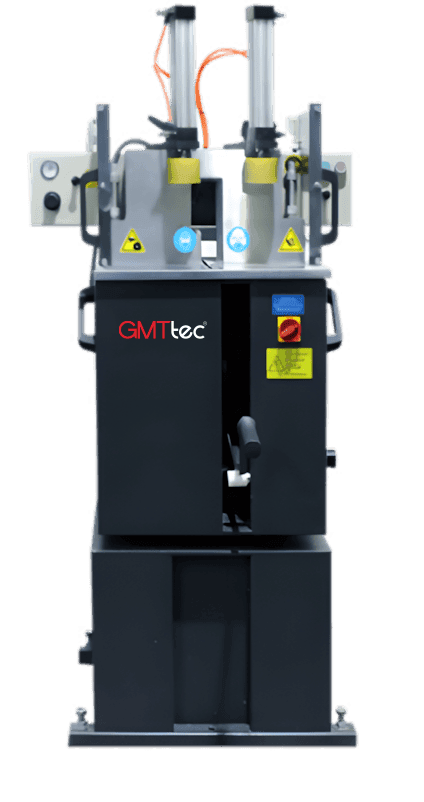

GMAC 450 D | GMAC 500 D | Up-Cutting Saw Machines
Features
- Saw Blade: Carbide-tipped industrial unit.
- Architecture: Rigid rotating body.
- Stroke: Protected vertical upward movement.
- Kinematics: Manual variable feed control.
- Angulation: Indexed pneumatic stopping system.
- Clamping: Multi-axis vertical pneumatic units.
- Safety: Guard cover and two-hand operation.
- Frame: Steel construction with vibration damping.
- Maintenance: Integrated air blow gun.
Technical Data
| Category | Feature | Value (GMAC 450 D) | Value (GMAC 500 D) |
| Capacity | Saw Blade Diameter | 450 mm | 500 mm |
| Max. Cutting Height | 170 mm | 210 mm | |
| Max. Cutting Angle | 62.5° | 62.5° | |
| Angle Index Interval | 2.5° | 2.5° | |
| Internal Bore | 32 mm | 32 mm | |
| Saw Feed System | Manual | Manual | |
| Motor & Power | Power Output | 3.0 kW | 3.0 kW |
| Rotational Speed | 2,800 rpm | 2,800 rpm | |
| Infrastructure | Voltage Supply | 400 V | 400 V |
| Frequency | 50 – 60 Hz | 50 – 60 Hz | |
| Operating Pressure | 6 – 8 bar | 6 – 8 bar | |
| Air Consumption | 15 l/min | 15 l/min | |
| Air Blow Gun | Integrated | Integrated | |
| Safety Control | Dual-Hand System | Dual-Hand System | |
| Physical Dimensions | Machine Dimensions (WxLxH) | 1,110 x 780 x 1,520 mm | 1,110 x 780 x 1,520 mm |
| Machine Net Weight | 240 kg | 241 kg | |
| Logistics | Shipping Dimensions (WxLxH) | 1,130 x 800 x 1,650 mm | 1,130 x 800 x 1,650 mm |
| Gross Weight | 255 kg | 256 kg |
