Automatic high-speed end-milling for industrial aluminum and PVC profile processing.
Products Groups
☰ Select a Product Category
▼
Aluminium Processing

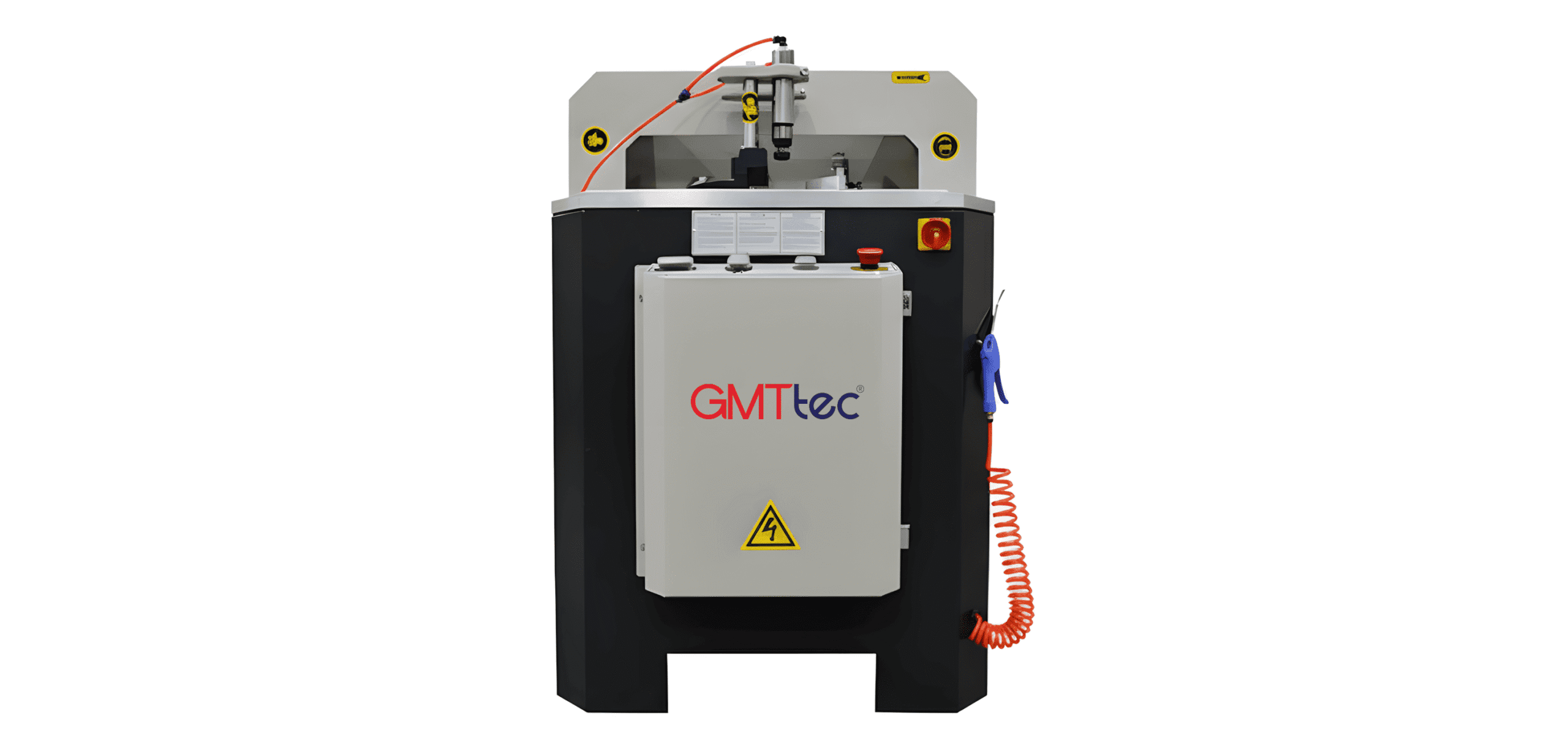

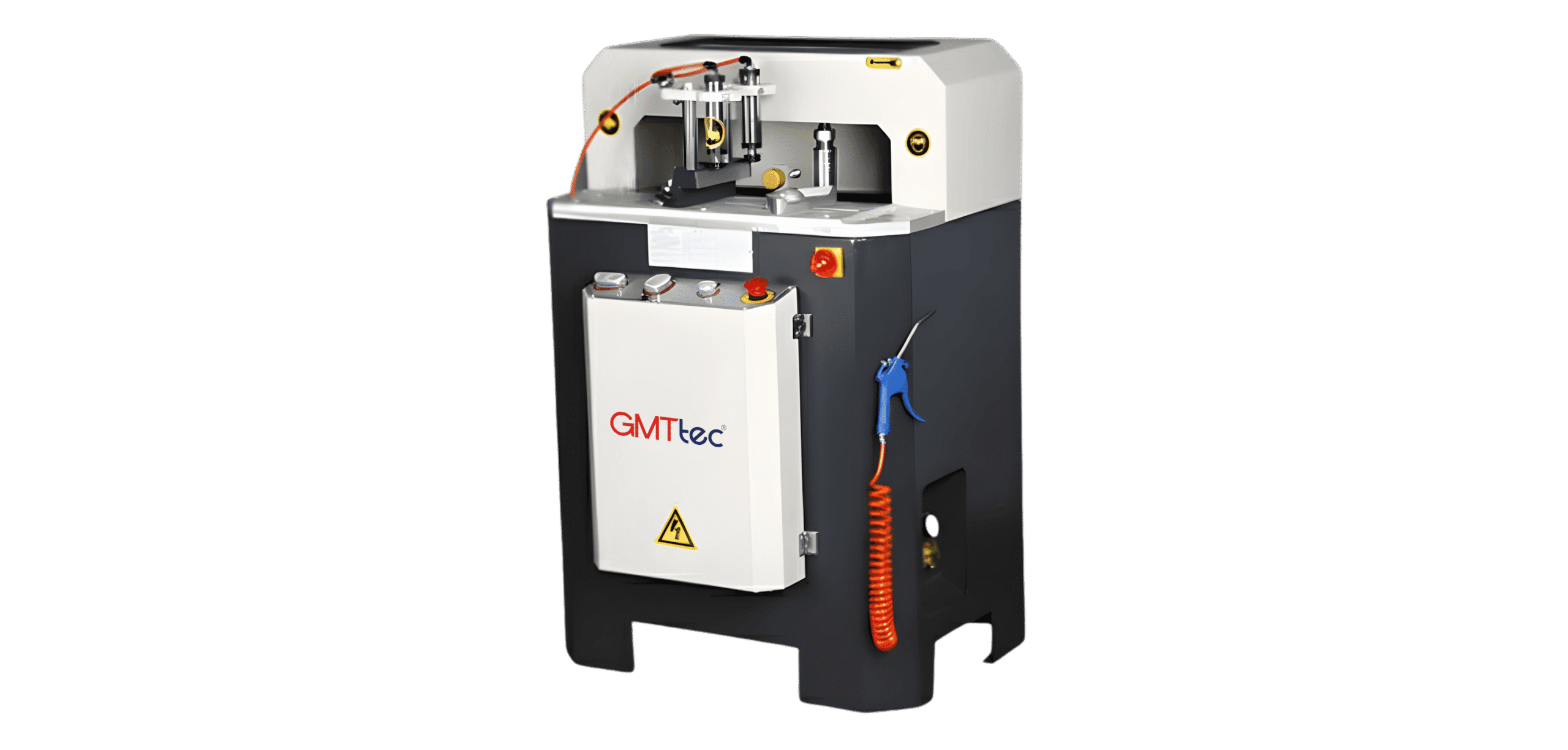

GOK 001 | GOK 002 | Automatic End Milling Machines
Features
- Cutting Kinematics: Pneumatic feed.

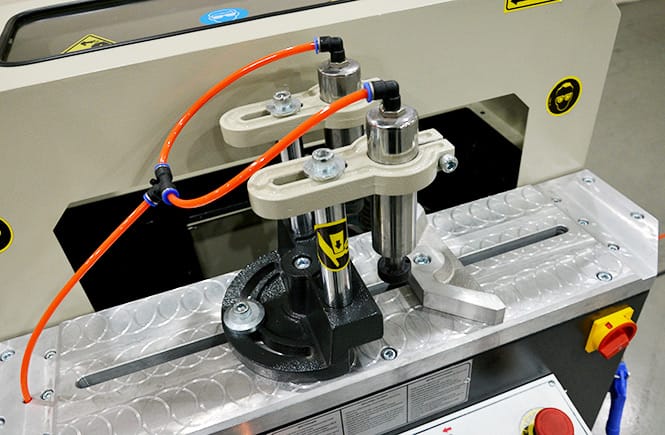

- Clamping Group: Vertical pneumatic units.
- Depth Control: Mechanical stopper.
- Frame: Vibration-damping steel construction.
- Safety Suite: Protective cover and emergency protocols.
- Maintenance: Integrated air blow gun.
- Blade Set: Manufacturer-approved standard cutters.
- Tooling: Universal shaft architecture.
Technical Data
| Category | Feature | GOK 001 | GOK 002 |
| Capacity | Milling System | Single-Set | Dual-Set |
| Blade Ext. Dia (Max) | 140 mm | 140 mm | |
| Max. Working Height | 210 mm | 210 mm | |
| Max. Cutting Height | 100 mm | 100 mm | |
| Motor & Power | Power Output | 1.1 kW | 1.1 kW |
| Rotational Speed | 2,800 rpm | 2,800 rpm | |
| Infrastructure | Voltage Supply | 400 V | 400 V |
| Frequency | 50 / 60 Hz | 50 / 60 Hz | |
| Operating Pressure | 6 – 8 bar | 6 – 8 bar | |
| Air Blow Gun | Integrated | Integrated | |
| Physical Dimensions | Machine Dim. (WxLxH) | 610 x 760 x 1,110 mm | 610 x 760 x 1,110 mm |
| Net Weight | 95 kg | 105 kg | |
| Logistics | Shipping Dim. (WxLxH) | 630 x 780 x 1,260 mm | 630 x 780 x 1,260 mm |
| Gross Weight | 105 kg | 115 kg |
