Description
Pneumatic downward-stroke cutting of aluminum, PVC, and wood profiles for straight and mitre operations.
Products Groups
☰ Select a Product Category
▼

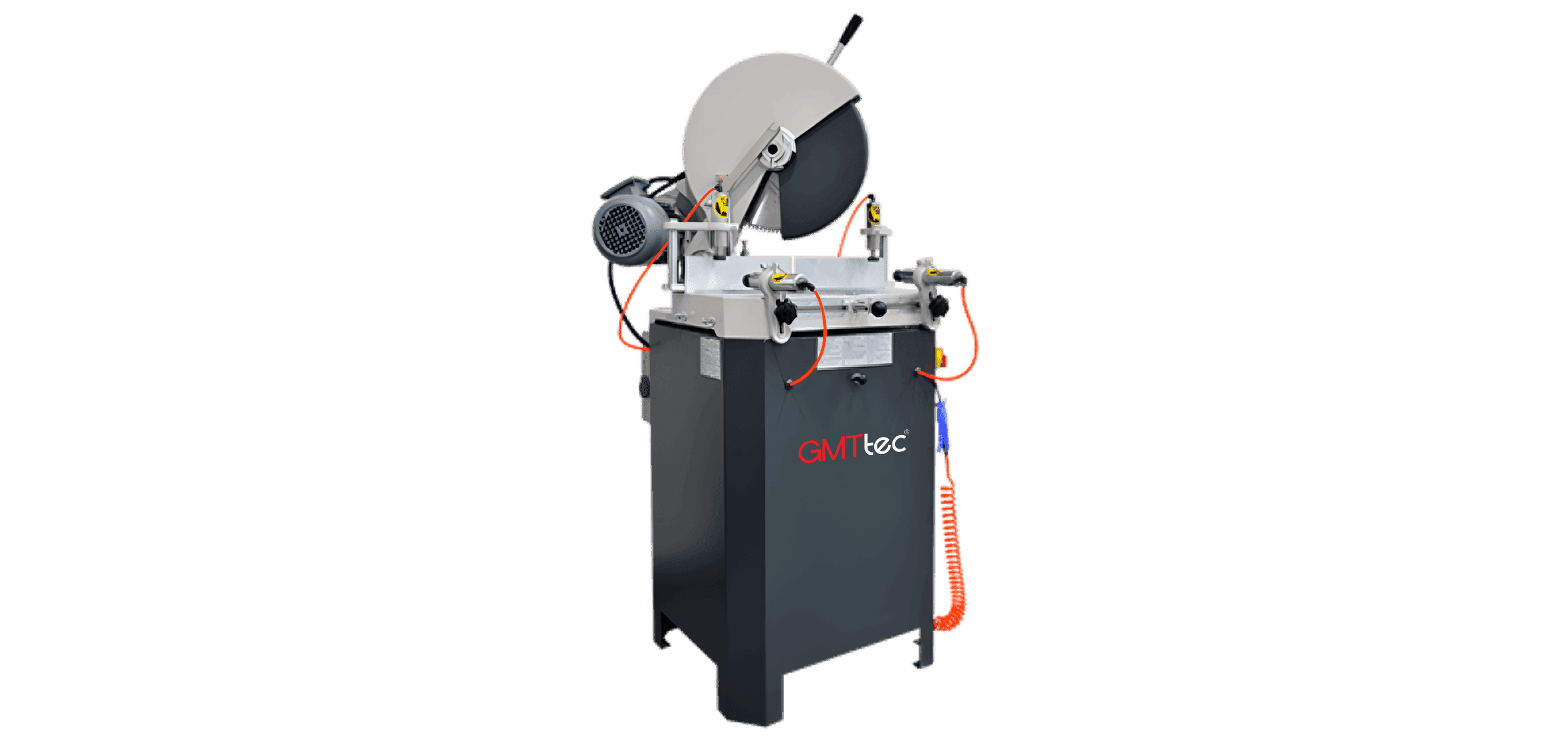

Aluminium Processing GODK 400 | Mitre Saw Machine
Features
- Saw Blade: Carbide-tipped industrial unit.
- Kinematics: Standardized pneumatic downward-stroke.
- Feed: Integrated hydro-pneumatic check control.
- Angulation: Rigid center-pivot rotation.
- Clamping: Vertical and horizontal pneumatic units.
- Frame: Steel construction with vibration damping.
- Maintenance: Integrated air blow gun.
- Support: Standard profile conveyor set.
Technical Data
| Category | Feature | Value (GODK 400) |
| Capacity | Saw Blade Diameter | 400 mm |
| Max. Cutting Height | 190 mm | |
| 90° Square Cap. | 160 x 130 mm | |
| 45° Square Cap. | 125 x 125 mm | |
| Saw Feed System | Hydro-Pneumatic | |
| Motor & Power | Total Power Output | 1.5 kW |
| Rotational Speed | 2,800 rpm | |
| Infrastructure | Voltage Supply | 400 V |
| Frequency | 50 / 60 Hz | |
| Operating Pressure | 6 – 8 bar | |
| Air Consumption | 10 l/min | |
| Air Blow Gun | Integrated | |
| Standard Conveyor | 2,000 mm | |
| Physical Dimensions | Machine Dimensions (WxLxH) | 1,180 x 730 x 1,400 mm |
| Net Weight | 145 kg | |
| Logistics | Shipping Dimensions (WxLxH) | 1,200 x 750 x 1,550 mm |
| Gross Weight | 160 kg |
