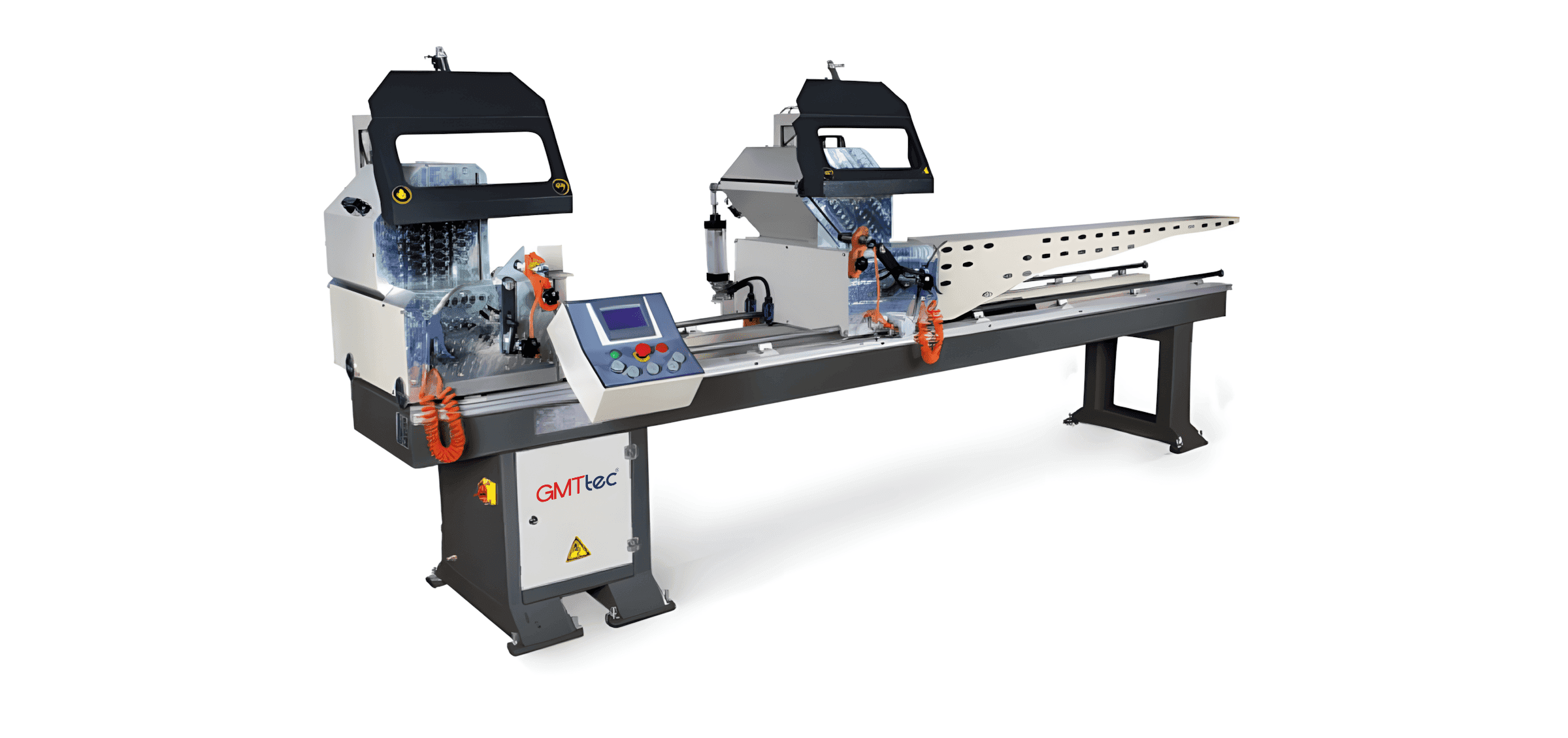

GSO ALC 420 | Servo-Controlled Double Head Mitre Saw Machine
Features
- Saw Blade: Carbide-tipped industrial unit.
- Positioning: High-torque servo motor for movable head.
- Control Interface: PLC system with industrial LCD touchscreen.
- Angulation: Automated 45° / 90° positioning; manual intermediate angle adjustment.
- Slicing Function: Automated profile feeding and 90° slicing on fixed head.
- Clamping: Dual horizontal pneumatic units.
- Safety: Automated hoods and two-hand operation.
- Frame: Steel construction with vibration damping.
- Maintenance: Integrated air blow gun.
- Support: Profile support conveyor.
Technical Data
| Category | Feature | Value (GSO ALC 420) |
| Capacity | Saw Blade Diameter | 420 mm |
| Saw Blade Thickness | 4 mm | |
| Working Length | 630 – 5,000 mm | |
| Cutting Precision | +/- 0.1 mm | |
| Automatic Cutting Angles | 45° / 90° | |
| 90° Cutting Cap. (Sq) | 100 x 100 mm | |
| 90° Cutting Cap. (Rec) | 100 x 160 mm | |
| Motor & Power | Main Motor Power (AC) | 1.5 kW (x2) |
| Main Motor Speed | 2,800 rpm | |
| Positioning Motor | High-Precision Servo | |
| Infrastructure | Voltage Supply | 400 V |
| Frequency | 50 / 60 Hz | |
| Working Pressure | 6 – 8 bar | |
| Air Consumption | 60 l/min | |
| Air Blow Gun | Integrated | |
| Profile Support Unit | Included | |
| Physical Dimensions | Machine Dimension (WxLxH) | 4,200 x 1,130 x 1,680 mm |
| Machine Net Weight | 631 kg | |
| Logistics | Shipping Dimension (WxLxH) | 4,300 x 1,250 x 1,900 mm |
| Total Shipping Weight | 766 kg |
