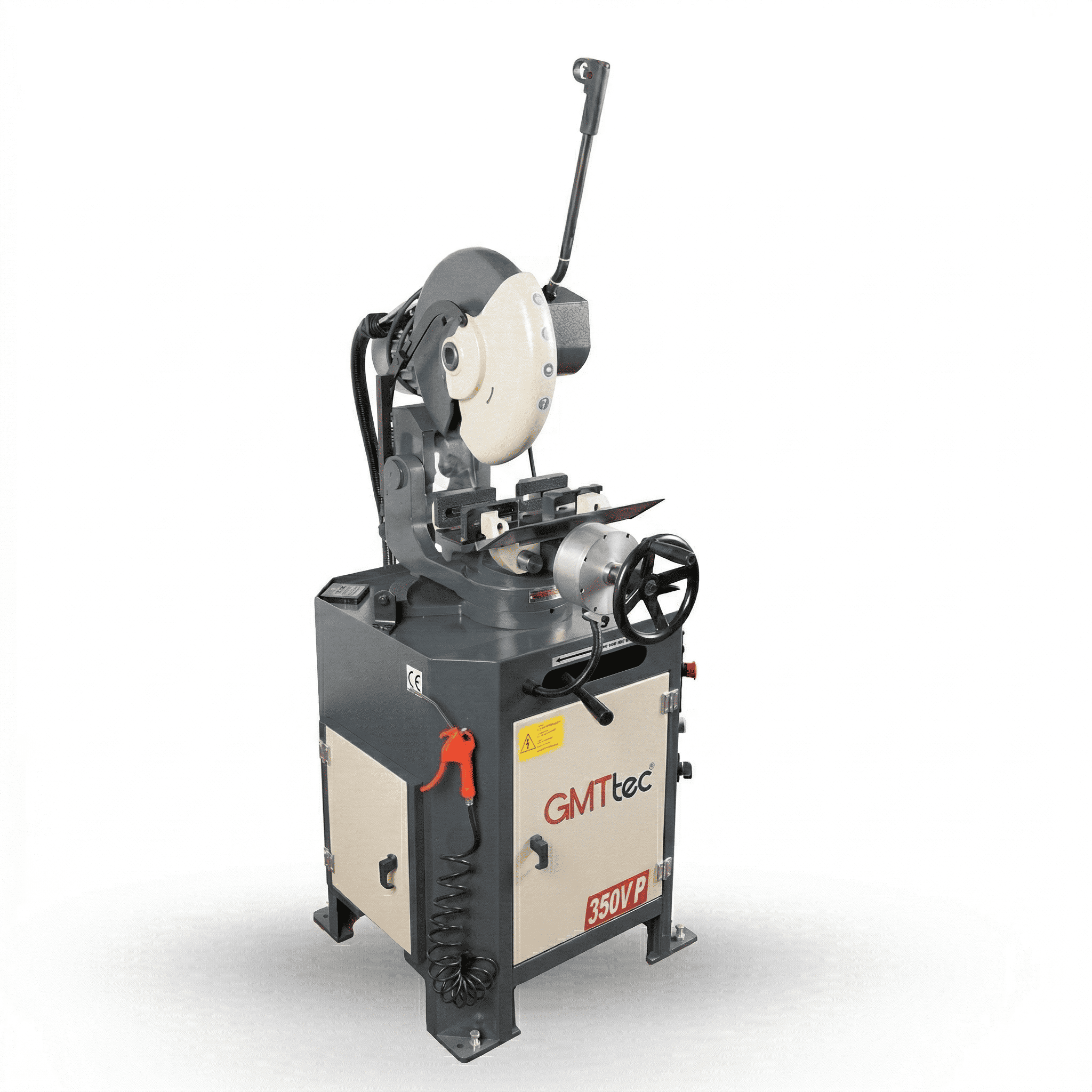

GTT 350 V | V-Vice Circular Saw Machine
Features
- V-Vice Clamping: Specialized manual V-geometry for centered fixing of heavy sections.
- Transmission: Reinforced dual-gear transmission for maximum torque.
- Angle Flexibility: Vise rotation for right and left miter cutting.
- Backlash Adjustment: Specialized blade backlash removal system.
- Cooling: Integrated circulation pump and tank for soluble oil.
- Maintenance: Integrated air blow gun system.
- Frame: Reinforced machine body for high-torque stability.
Technical Data
| Category | Feature | Value (GTT 350 V) |
| Capacity | Blade Diameter | 350 mm |
| 90° Cutting (Round) | 120 mm | |
| 90° Cutting (Sq / Rect) | 110 mm / 160 x 90 mm | |
| 45° Cutting (Round) | 105 mm | |
| Saw Blade | Optional | |
| Motor & Power | Main Motor Power | 1.8 / 2.4 kW |
| Blade Speed | 35 / 70 rpm | |
| Infrastructure | Voltage Supply | 400 V |
| Frequency | 50 / 60 Hz | |
| Control & Drive | Manual V-Vice / High-Torque | |
| Air Blow Gun | Integrated | |
| Physical Dimensions | Machine Dimensions (WxLxH) | 1,200 x 730 x 1,410 mm |
| Net Weight | 260 kg | |
| Logistics | Shipping Dimensions (WxLxH) | 1,220 x 750 x 1,560 mm |
| Total Gross Weight | 275 kg |
