PVC Processing Description
Professional dual-head architecture for heat welding and corner assembly of two PVC profile corners simultaneously.
Products Groups
☰ Select a Product Category
▼
Aluminium Processing

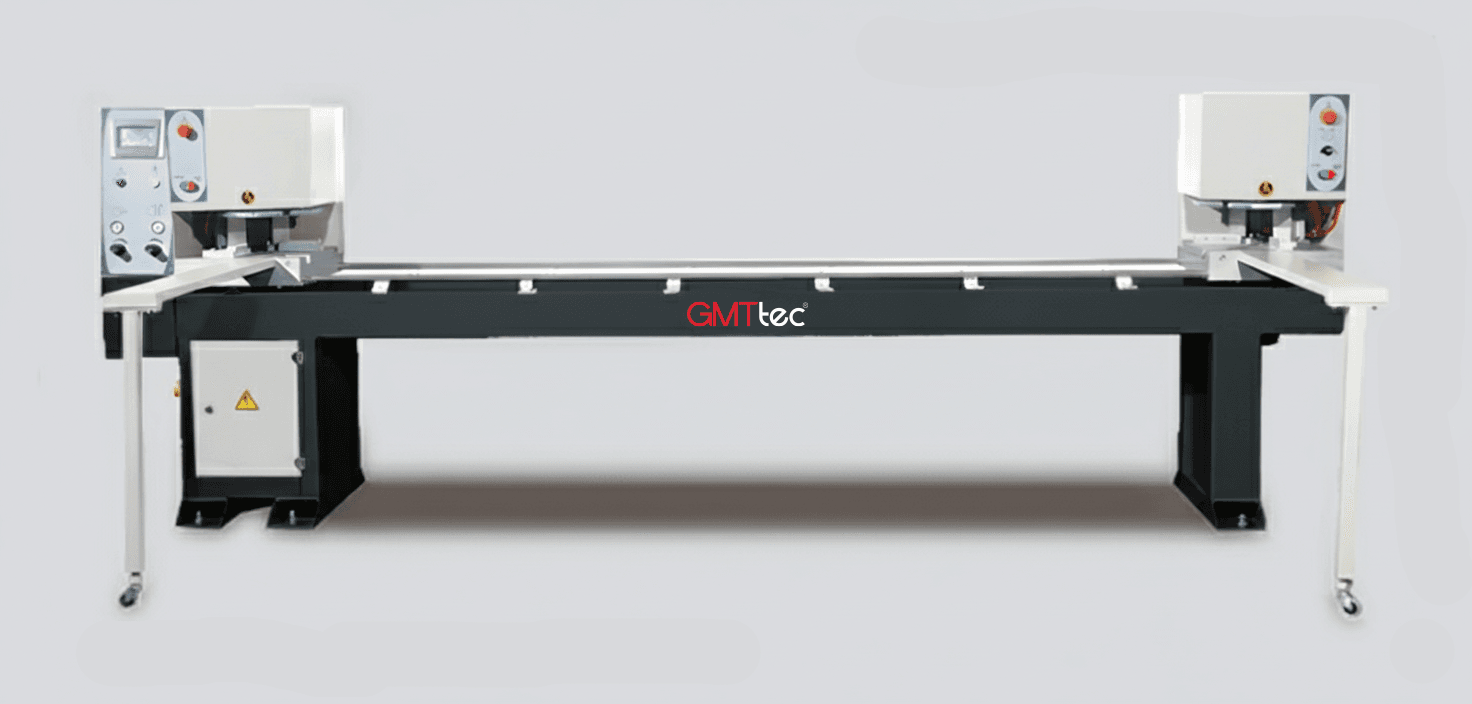

GCM | GLCM | GNCM | Double-Corner Welding Machines
Features
- Thermal Cycle Management: PLC-controlled digital monitoring.
- Control Interface: Touchscreen HMI cycle governance.
- Thermostatic Infrastructure: Real-time heating plate regulation.

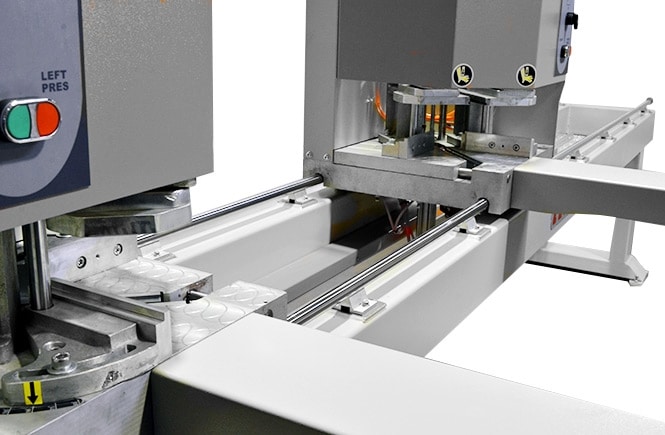

- Linear Motion Infrastructure: Precision chrome-plated guide shafts.
- Clamping: Independent pneumatic profile stabilization with pressure adjustment.
- Profile Support: Left and right alignment arms.
- Table Kinematics: Synchronized pneumatic head movement.
- Head Configuration: Fixed left (30° – 180°) and manual mobile right head with braking.
- Discharge Function: Automated 20 mm reverse movement.
- Voltage Protection: Integrated digital safety relay.
- Frame: Heavy-duty chassis component.
- Maintenance: Rapid Teflon wrapping and quick-change system.
- Operation Mode: Automated 90° welding; single-head or dual-head selection.
- Process Control: Independent adjustment of melting, welding time, and pressure.
- Molds: Practical quick-change welding mold system.
Technical Data
| Category | Feature | GCM (Standard) | GLCM (High-Profile/ 0.2mm) | GNCM (0.2 mm) |
| Capacity | Welding Mode | Standard | Zero-Seam | Zero-Seam |
| Profile Height Cap. | 105 mm | 180 mm | 105 mm | |
| Max. Profile Width | 130 mm | 130 mm | 130 mm | |
| Left Head Angle | 30° – 180° | 30° – 180° | 30° – 180° | |
| Left Head Reverse | 20 mm | 20 mm | 20 mm | |
| Motor & Power | Control Interface | Touchscreen PLC | Touchscreen PLC | Touchscreen PLC |
| Heating Power | 3.5 kW | 3.5 kW | 3.5 kW | |
| Temperature Range | 0° – 300°C | 0° – 300°C | 0° – 300°C | |
| Infrastructure | Voltage Supply | 230 V | 230 V | 230 V |
| Frequency | 50 / 60 Hz | 50 / 60 Hz | 50 / 60 Hz | |
| Operating Pressure | 6 – 8 bar | 6 – 8 bar | 6 – 8 bar | |
| Support Arms | Included | Included | Included | |
| Physical Dimensions | System Dim. (WxLxH) | 4,300 x 780 x 1,550 mm | 4,300 x 780 x 1,550 mm | 4,300 x 780 x 1,550 mm |
| Net Weight | 400 kg | 417 kg | 410 kg | |
| Logistics | Shipping Dim. (WxLxH) | 4,400 x 880 x 1,800 mm | 4,400 x 880 x 1,800 mm | 4,400 x 880 x 1,800 mm |
| Gross Weight | 525 kg | 542 kg | 535 kg |
