PVC Processing Description
Portable copy routing system designed for lock, handle, and accessory slots in aluminum and PVC profiles.
Products Groups
☰ Select a Product Category
▼
Aluminium Processing

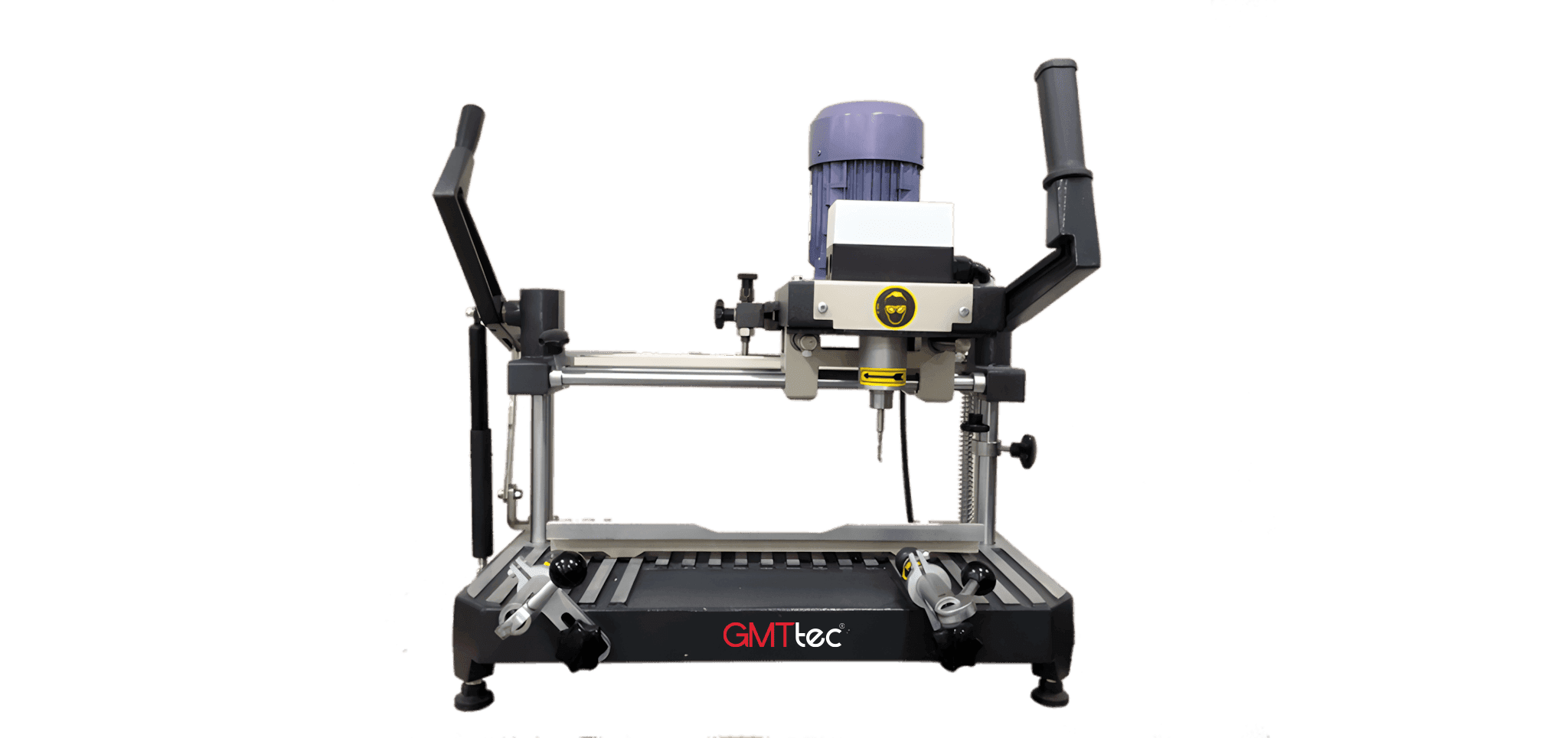

GPFR | Portable Template Copy Router Machine
Features
- Copy Routing: 1:1 template copying mechanism.
- Mobile Body: Lightweight cast-aluminum portable construction.
- Cutting Tool: Standard routing bit.
- Clamping Group: Dual horizontal manual cylinder system.
- Linear Movement: Chrome-plated precision guide shafts.
- Independent Routing: Adjustable mechanical alignment stoppers.
Technical Data
| Category | Feature | Value (GPFR) |
| Capacity | X / Y / Z Axis Movement | 255 / 110 / 90 mm |
| Standard Milling Bit | 1 Unit x 5 mm | |
| Motor & Power | Main Motor Power Output | 0.75 kW |
| Main Motor Rotational Speed | 2,800 rpm | |
| Spindle Rotational Speed | 14,000 rpm | |
| Infrastructure | Voltage Supply | 230 V |
| Frequency | 50 / 60 Hz | |
| Air Blow Gun | Integrated | |
| Physical Dimensions | Machine Dimensions (WxLxH) | 600 x 790 x 660 mm |
| Net Weight | 61 kg | |
| Logistics | Shipping Dimensions (WxLxH) | 620 x 810 x 810 mm |
| Gross Weight | 68 kg |
