PVC Processing Description
Synchronized quad-blade cutting of PVC glazing bead profiles for architectural window systems.
Products Groups
☰ Select a Product Category
▼
Aluminium Processing
GCK | Glazing Bead Saw Machine
Features
- Saw Blade: HSS precision units.
- Blade Configuration: Synchronized four-blade system.
- Operating Principle: Automated simultaneous cutting.

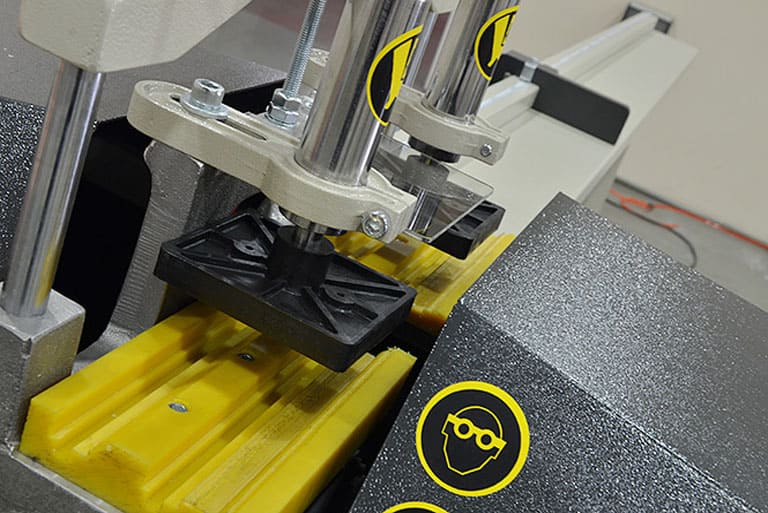

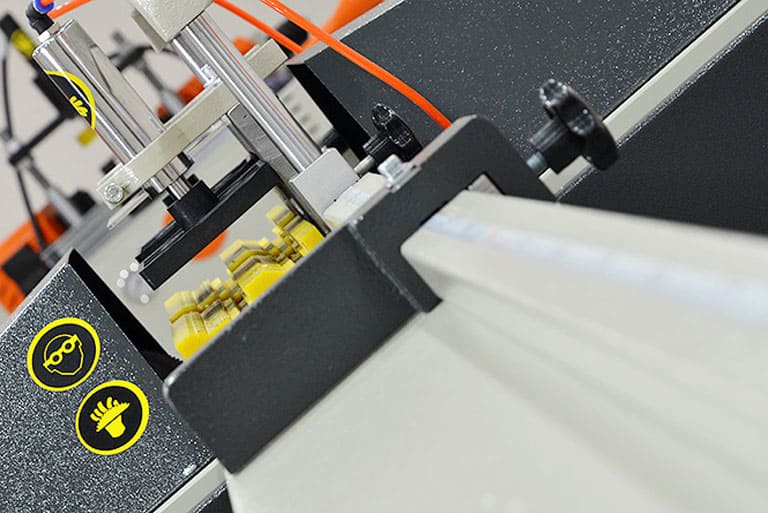

- Clamping: Vertical pneumatic units.
- Setup Interface: Manual height configuration.
- Frame: Steel construction with vibration damping.
- Maintenance: Integrated air blow gun.
- Support: Standard profile conveyor set.
- Technical Note: Profile-specific mold operation (1 Set included)
Technical Data
| Category | Feature | Value (GCK) |
| Capacity | Main Saw Blade Diameter | 200 mm |
| Scoring Blade Diameter | 110 mm | |
| Blade Body Thickness | 4 mm | |
| Motor & Power | Total Power Output | 2 x 0.75 kW |
| Rotational Speed | 2,800 rpm | |
| Infrastructure | Voltage Supply | 400 V |
| Frequency | 50 / 60 Hz | |
| Operating Pressure | 6–8 bar | |
| Air Blow Gun | Integrated | |
| Standard Conveyor | 2,000 mm | |
| Physical Dimensions | System Dimensions (WxLxH) | 1,300 x 570 x 1,260 mm |
| System Net Weight | 120 kg | |
| Logistics | Shipping Dimensions (WxLxH) | 1,320 x 590 x 1,410 mm |
| Total Shipping Weight | 133 kg |
