Automated simultaneous straight and mitre cutting of large-scale Aluminum, PVC, and wood profiles via professional dual-head architecture.
Products Groups
☰ Select a Product Category
▼
Aluminium Processing

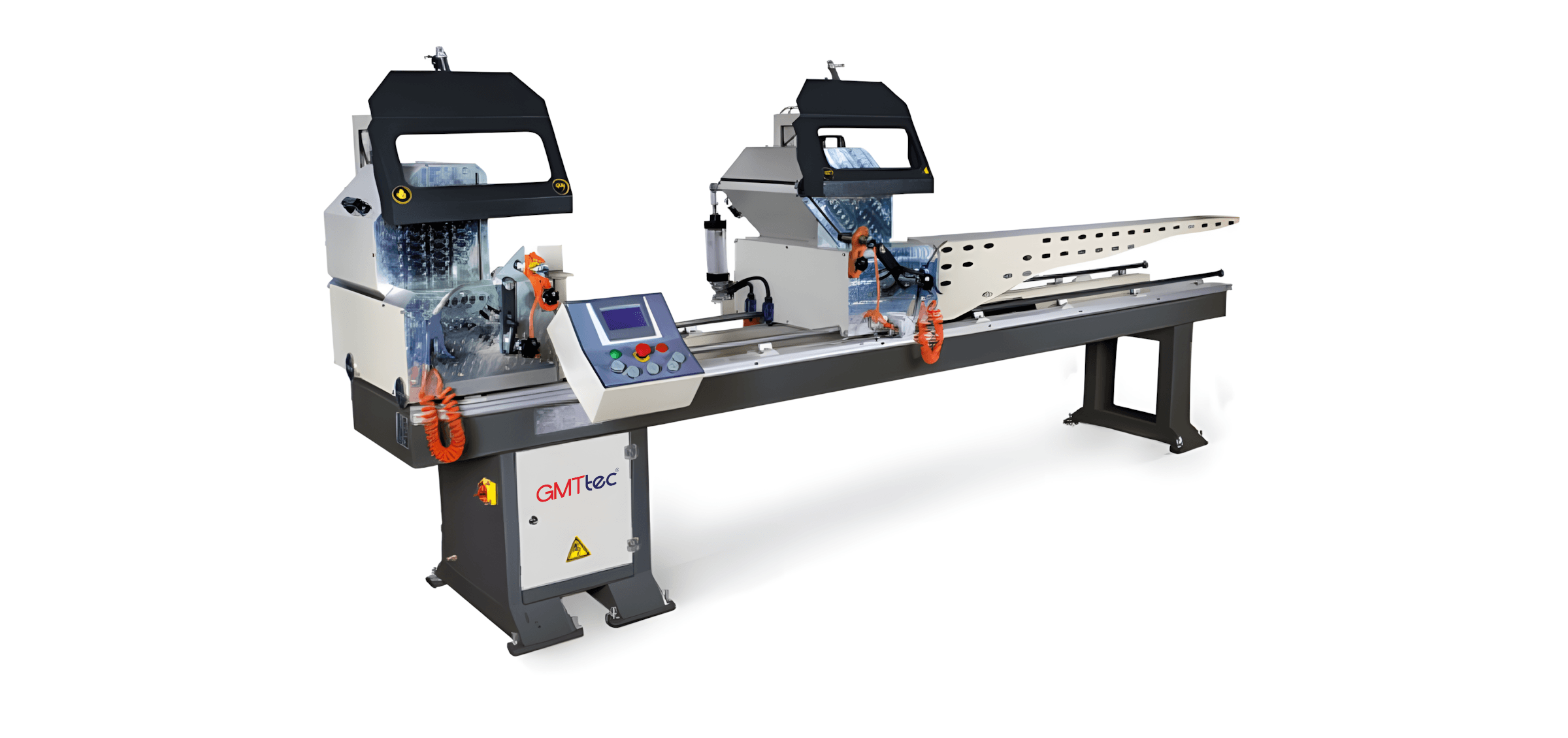

GCO ALC 420 | Double Head Mitre Saw Machine
Features

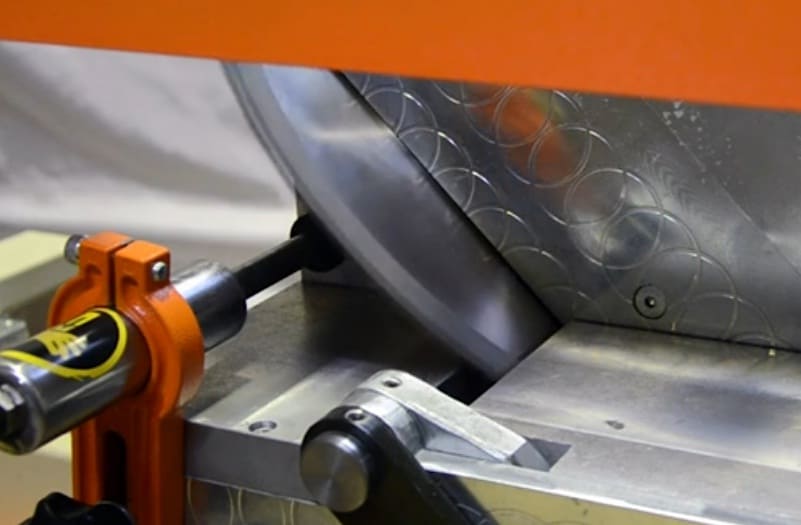

- Saw Blade: Carbide-tipped industrial unit.

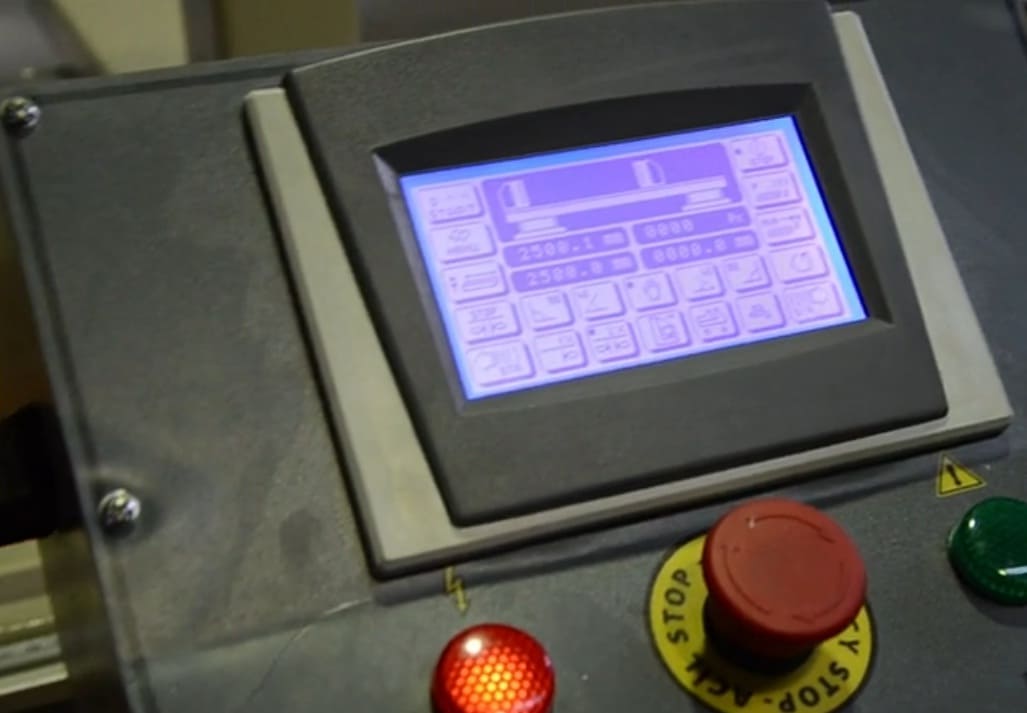

- Control Interface: PLC system with LCD touchscreen.
- Angulation: Automated 45° / 90° positioning; manual intermediate angle adjustment.
- Slicing Function: Automated slicing at 90° on fixed head.

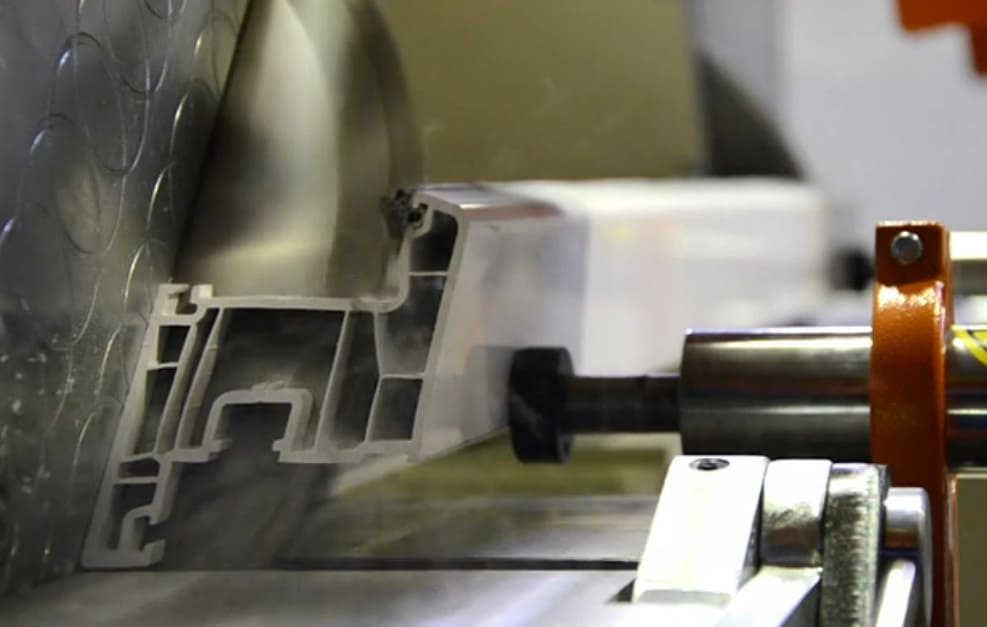

- Clamping: Multi-axis pneumatic units.
- Safety: Automated hoods and two-hand operation.
- Frame: Steel construction and vibration damping.
- Maintenance: Integrated air blow gun.
- Support: Profile support conveyor.
Technical Data
| Category | Feature | Value (GCO ALC 420) |
| Capacity | Saw Blade Diameter | 420 mm |
| Automatic Mitre Angles | 45° / 90° | |
| Mitre Precision | +/- 0.1 mm | |
| Working Length | 630 – 5,000 mm | |
| 90° Cutting Cap. (Sq) | 100 x 100 mm | |
| 90° Cutting Cap. (Rec) | 100 x 160 mm | |
| Motor & Power | Main Motor Power | 1.5 kW |
| Feed Motor Power | 0.55 kW | |
| Main Motor Speed | 2,800 rpm | |
| Feed Motor Speed | 1,400 rpm | |
| Infrastructure | Voltage Supply | 400 V |
| Frequency | 50 / 60 Hz | |
| Operating Pressure | 6 – 8 bar | |
| Air Consumption | 60 l/min | |
| Air Blow Gun | Integrated | |
| Profile Support Unit | Included | |
| Physical Dimensions | Machine Dimensions (WxLxH) | 4,200 x 1,130 x 1,680 mm |
| Machine Net Weight | 635 kg | |
| Logistics | Shipping Dimensions (WxLxH) | 4,300 x 1,250 x 1,900 mm |
| Total Shipping Weight | 770 kg |
