High-precision integration of servo-driven copy routing and asynchronous triple hole drilling for handle preparations in aluminum and PVC profiles.
Products Groups
☰ Select a Product Category
▼
Aluminium Processing

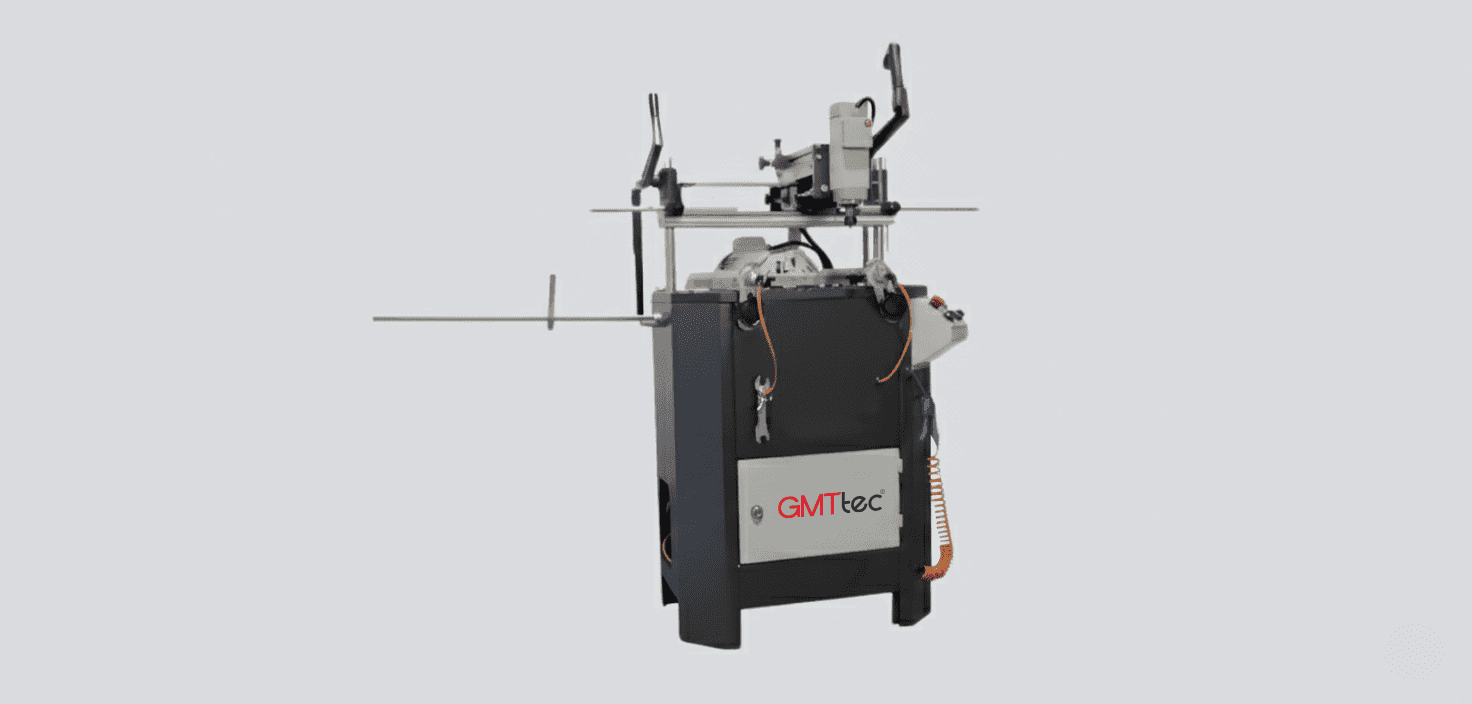

GFRH 002 | Servo-Controlled Copy Router and Triple Drilling Machine
Features
- Unit Control: Independent operation of servo routing and asynchronous triple drilling motors.
- Precision Servo Drive: Dynamic speed and positioning control.
- Triple Drilling: Automatic horizontal drilling unit for handle hole preparation.
- Copy Routing: 1:1 template copying mechanism.
- Cutting Tool: Drill bit set and standard routing bit.
- Support: Profile support arm.
- Maintenance: Integrated air blow gun.
- Frame: Steel-sheet construction with vibration damping.
Technical Data
| Category | Feature | Value (GFRH 002) |
| Capacity | X / Y / Z Axis Travel | 255 x 110 x 90 mm |
| Triple Drill Bit Set | 2 x 10 mm / 1 x 12 mm | |
| Motor & Power | Routing Power Output | 1.1 kW (Servo) |
| Drilling Power Output | 1.1 kW (Asynchronous) | |
| Routing Control | Servo-Controlled | |
| Power Supply | 400 V | |
| Infrastructure | Spindle Speed | 15,350 rpm (Dynamic) |
| Operating Pressure | 6 – 8 bar | |
| Frequency | 50 / 60 Hz | |
| Cleaning Kit | Integrated Air Blow Gun | |
| Standard Support | Profile Support Arm | |
| Physical Dimensions | Machine Dimensions (WxLxH) | 690 x 830 x 1,420 mm |
| Net Weight | 120 kg | |
| Logistics | Shipping Dimensions (WxLxH) | 870 x 850 x 1,570 mm |
| Gross Weight | 133 kg |
