PVC Processing Description
Portable overhead compound angular cutting of aluminum, PVC, and wood profiles via tilting head architecture.
Products Groups
☰ Select a Product Category
▼
Aluminium Processing

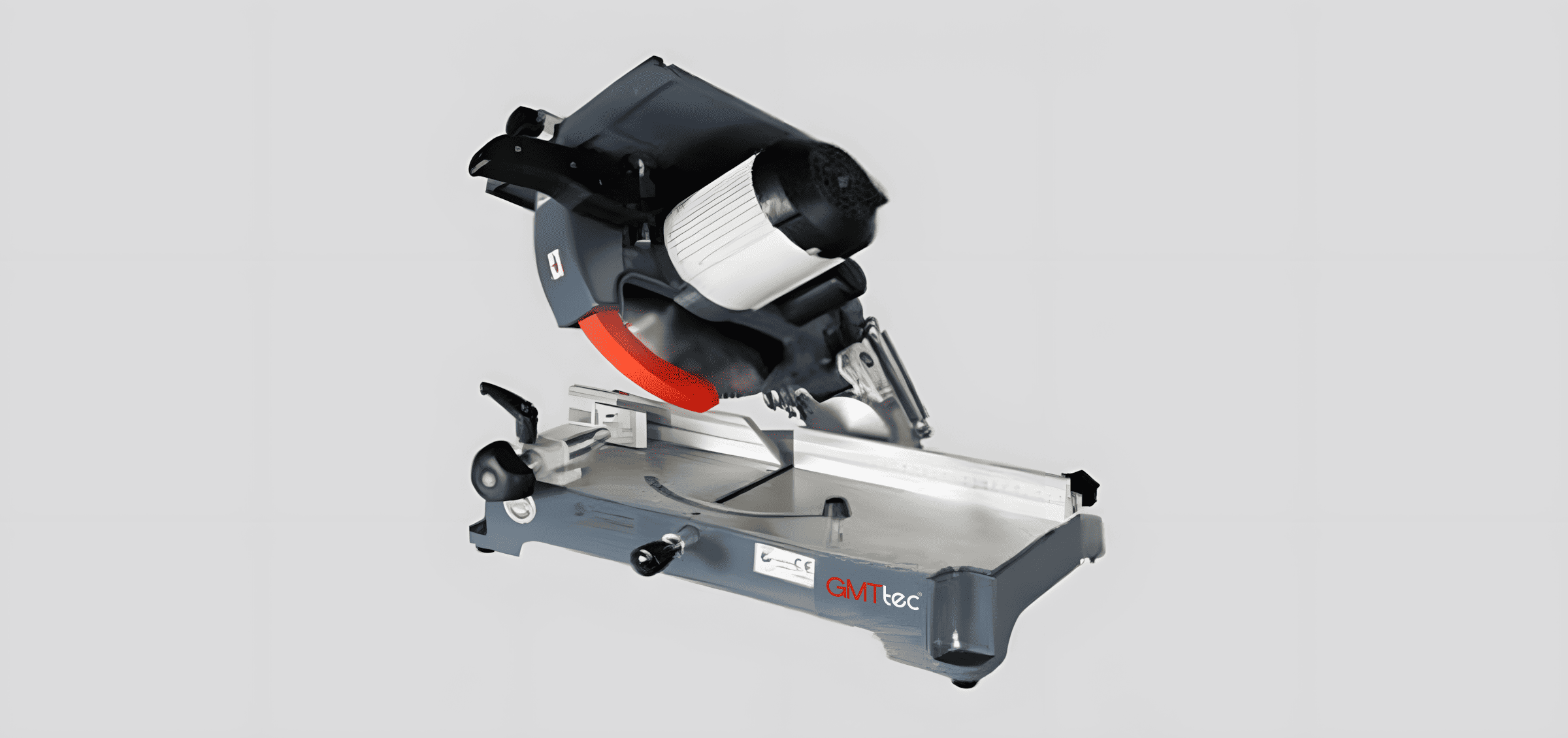

GTK 300 | Portable Mitre Saw Machine
Features

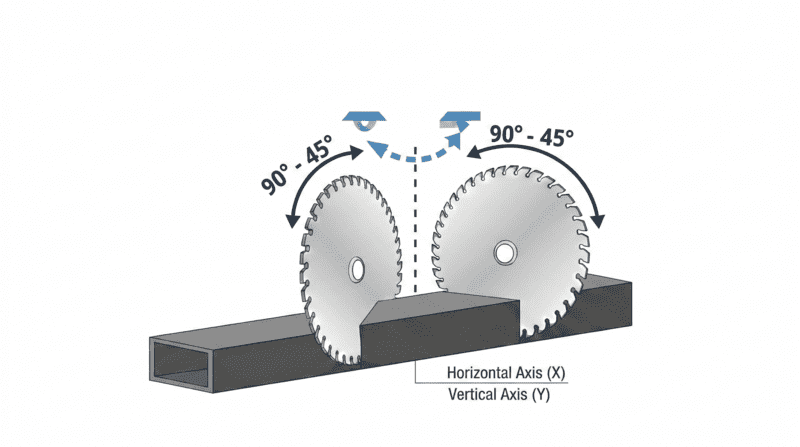

- Tilting Infrastructure: Precision compound cutting head up to 45°.
- Cutting Kinematics: Manual overhead movement.
- Dual-Function Architecture: Mitre and longitudinal upper table.
- Power Transmission: Single-phase electric motor.
- Angulation: Fixed locking (15°, 22.5°, 30°, 45°, 90°) and free angle cutting.
- Clamping: Single-axis manual unit.
- Protection Group: Spring-assisted guard assembly.
- Body Structure: High-strength aluminum body.
Technical Data
| Category | Feature | Value (GTK 300) |
| Capacity | Saw Blade External Diameter | 300 mm |
| Max. Tilting Cutting Angle | 45° | |
| Horizontal Cutting Angles | 15° / 22.5° / 30° / 45° / 90° | |
| Saw Blade | Optional | |
| Motor & Power | Power Output | 1.1 kW |
| Rotational Speed | 2,800 rpm | |
| Infrastructure | Voltage Supply | 230 V |
| Operating Frequency | 50 / 60 Hz | |
| Physical Dimensions | Machine Dimensions (WxLxH) | 460 x 600 x 370 mm |
| Net Weight | 27 kg | |
| Logistics | Shipping Dimensions (WxLxH) | 480 x 620 x 410 mm |
| Gross Weight | 35 kg |
